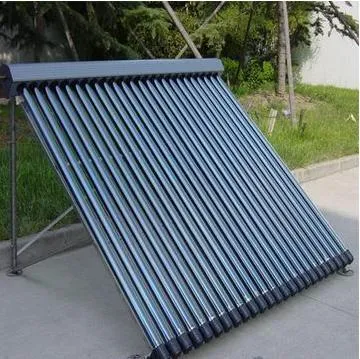

High Temperature Solar Water Heater Collector

Product Description

solar water heater collector is a device that absorbs solar energy from the sun and converts it into usable heat energy. The heat is normally absorbed by water, or a freeze resistant water mix, which can then be used to supplement hot water heating, space heating.
Product Applications
1) Domestic, industrial and commercial heating use
2) Suitable for open or closed Loop (glycol-water)
3) Space heating
4) Caravan Parks, Hotels, Schools, Public Showers/Kitchens , Restaurants
5) For large scale water heating
Main feature
1) Reliable, efficient, twin-glass evacuated tubes
2) Red copper(TP2) heat pipes for rapid heat transfer
3) Attractive design, standard frame suitable for pitched roof or flat roof
4) Significant advantages over flat plate
5) Easy plug-in installation
6) Improves the environment and save your fuel cost.
7) Domestic and Commercial Use, solar collector is ideal for both domestic and commercial use, and is scalable to your exact needs. This allows us to be highly competitive.
Specification
Model:NFHPC
Material of vacuum tube:3.3 high borosilicate glass 58*1800 & 47*1500
Heat pipe: Anti-freeze for -30degree
Insolation:Rock Wool
Manifold shell:Aluminum alloy
Frame:Aluminum alloy 1.8mm
Header:TP2 red copper 22mm connector
Style:10tubes,15tubes,20tubes ,25tubes and 30tubes,36tubes.Can be customerized

Item No.	Tube Data(mm/pcs)		Collecting area(m²)	Volume proposal(L)	Packing Volume(m3)	Loading QTY.(sets)
	Size	no.of tubes				20'GP	40'GP	40'HQ
VOD-HPSC-10	¢58*1800	10	1.31	80L	0.153	164	360	445
VOD-HPSC-12	¢58*1800	12	1.58	100L	0.176	142	313	387
VOD-HPSC-18	¢58*1800	18	2.37	150L	0.273	92	202	249
VOD-HPSC-20	¢58*1800	20	2.63	160L	0.310	81	178	220
VOD-HPSC-24	¢58*1800	24	3.15	200L	0.417	60	312	163
VOD-HPSC-30	¢58*1800	30	3.94	250L	0.504	50	109	135
VOD-HPSC-36	¢58*1800	36	4.73	300L	0.515	49	107	132
