US$5,000.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000
Applicable Industries
Construction Works, Energy & Mining, Other
Maximum Digging Depth
4120mm
Maximum Digging Height
6945mm
Max Digging Radius
6205mm
Hydraulic Cylinder Brand
Shantui
Hydraulic Pump Brand
Husco
Hydraulic Valve Brand
Shantui
Core Components
Engine, Gear, Motor, Pump, Bearing, Gearbox
Hydraulic System
Variable Piston Pump
Unique Selling Point
High Digging Power
Transport Package
Export Standard Packaging
Specification
Operating Weight: 7.65Ton
Production Capacity
5000 Unit/Units Per Year
Product Description
Product Features

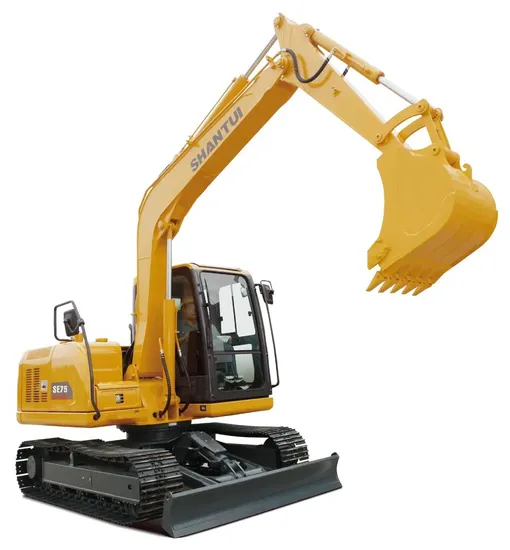

SHANTUI SE75 7Ton mini crawler excavator
1.Originally imported Kubota engine. The engine conforms to China-III emission regulation and features strong power, low fuel consumption, and prominent performance and the aluminum paralleling radiator features good heat dissipation performance.
2.Originally imported hydraulic system. The four-pump constant power control mode is adopted to realize the perfect matching between hydraulic system and engine, reduce the fuel consumption, and improve the efficiency and the double-pump confluence technology is applied for the boom and arm to realize high motion speeds and stable and efficient operations.
3.Electro-mechanically integrated intelligent electronic control system with proprietary intellectual property rights. The multi-functional LCD display can realize the data acquisition and transmission, orientation, control, protection, and remote firmware upgrade and achieve high intelligent control.
4.All-new cab with broader vision field and more reasonable space layout. The air-cushioned seats and the ergonomic control system realize simpler and more comfortable operations and minimize the driver's fatigue.
5.High reliability traveling mechanism and working device. The application of strength calculation, finite element analysis, and new structures and new materials for the structural parts improves the reliability of the structural parts.
6.Convenient repairs and maintenance The application of full-opening front and rear hoods and side gates and the central lubrication system for slewing system realizes convenient and efficient maintenance and reduces the maintenance costs.
Product Parameters
Parameter
| SE75
|
Engine
|
|
Engine model
| Kubota V3307T
|
Rated power
| 48.9kw/2000rpm
|
Max.torque
| 263.1N·M/1400rpm
|
Displacement
| 3.3 L
|
Emission standard
| Tier 3
|
Operation Range
|
|
Operating weight
| 7650 kg
|
Max. digging height
| 6945 mm
|
Max. dumping height
| 4895 mm
|
Max. digging depth
| 4120 mm
|
Max. vertical digging depth
| 3620 mm
|
Max. digging reach
| 6360 mm
|
Min. swing radius
| 2040 mm
|
Dimensions
|
|
Overall length
| 6240 mm
|
Overall width
| 2260 mm
|
Overall height
| 2680 mm
|
Tail swing radius
| 1880 mm
|
Min. ground clearance
| 385 mm
|
Counterweight ground clearance
| 825 mm
|
Undercarriage/Working Device
|
|
Std. track shoe width
| 450 mm
|
Bucket capacity
| 0.32 m3
|
Carrier roller(per side)
| 1
|
Track roller(per side)
| 5
|
Track gauge
| 1800 mm
|
Boom length
| 3710 mm
|
Arm length
| 1650 mm
|
Performance
|
|
Travel speed
| 2.9/4.8 km/h
|
Gradeability
| 35°
|
Ground pressure
| 34 kPa
|
Tractive force
| 86.5 kN
|
Bucket digging force
| 66 kN
|
Arm digging force
| 44 kN
|
Service Refill Capacities
|
|
Fuel tank
| 120 L
|
Engine coolant
| 11 L
|
Engine oil
| 11 L
|
Hydraulic tank
| 140/160 L
|
Hydraulic System
|
|
Type
| Load Sensing Hydraulics with Variable Displacement Piston Pump
|
Pump flow
| 160L/min
|
Swing speed
| 0-11r/min
|
If you need more product information, please feel free to contact us!
Success Case
Packaging & Shipping
After Sales Service
1.Six Free Services
Free technical enquiries with our experts.
Free repair service during warranty period.
Free special services for all key construction projects.
Free 0 hour service upon deliver of machine.
Free training of operators and repairs staff.
Free maintenance service tracking (customer to provide resources)
2.Product and Technical Inquiries
We have established a team of specialists, knowledgeable in our products and services, in order to provide information and answers to our customers on technical issues.
3.Special Services for Key Projects
If Shantui machinery is in operation in key projects on a provincial level or higher, the customer will receive special services from Shantui (free special coating service, on-site service, extended on-site service). These special services will allow customers to work more freely without any worries.
