5L 10L 20L Mini Cosmetic Skin Cream Vacuum Lab Emulsifier Mixer Laboratory Homogenizer Machine

5L 10L 20L Mini Cosmetic Skin Cream Vacuum Lab Emulsifier Mixer Laboratory Homogenizer Machine

US$4,000.00-8,000.00 1 set (MOQ)

Basic Info.

Model NO.
TPEM-10
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Granules
Application Area
Cosmetic, Chemical
Certification
CE, ISO
Condition
Used
Mixing Drum Shape
Disc
Stirring Type
Spiral
Warranty
1 year
Working
Shear Mixer
Heating Method
Electric or Steam(Optional)
Control
Button or PLC
Material
Stainless Steel 304 / SUS316L
Voltage
380V
Working Volume
5-10L
Mixer Type
Homogenizer
Layout Type
Verticle
Operating type
Continuous Operating
Transport Package
Ply Wooden Case
Specification
5L 10L
Trademark
TOPCN
Origin
China
HS Code
8479820090
Production Capacity
20sets/Month

Product Description


ModelTPEM-10
Content volume12000ml
Working volume10000ml
Design pressure of glass reactor-0.0975 ~ 0MPa
Minimum allowable mixing amount1000ML
Minimum allowable emulsification5000ML
Maximum allowable mixing capacity10000ml
Stirring Power supply220 v / 50 hz
Stirring power340 w
Stirring speed0-230 RPM
high shear emulsion disperser Power supply220 v / 50 hz
high shear emulsion disperser Power710 w
high shear emulsion disperser No-load speed range800
Different Design Optional
Working Capacity (L)1L2L5L10L
MixerWall scraper helix mixer, 0~200RPM
HomogenizerSUS316L, 8000~28000RPM
MaterialGlass/Stainless Steel
DOUBLE JACKET LAYERHeating/cooling: jacket water circulation

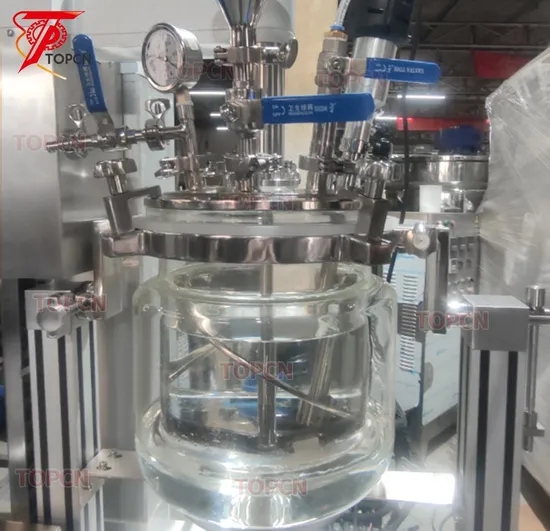

Glass tank: we can see the whole processing of mixing, homogenizing, emulsifying of materialsSingle phase frame mixing type(accept customize)
Mixing & homogenizer imported frequency to meet the requirements of different production processes
Homogeneous structure adopts German technology, speed can be customized, and the maximum shear fineness can reach 2um-5umVacuum defoaming makes the materials meet the requirements of sterility, and vacuum suction the materials (water, oil, powder)The lid of the main pot can be lifted and lowered, easy to clean, and the pot can be disassembled freely
FAQ:
Q1: Are you a machine manufacturer or trading company?
A1: We are a reliable machine manufacturer that could gives u best service. And our machine can be customized by client's requirement. Welcome to visit our factory!
Q2: How do you guarantee this machine normally operating?
A2: Every machine is tested by our factory and other client before shipping, We will adjust the machine to optimal effect before delivery. And spare is always available and free for you in warranty year.
Q3: How can I install this machine when it arrives?
A3: We will send the engineers overseas to help client installing, commissioning and training.
Q4: Could I choose the language on touch screen?
A4: It's no problem. You can choose Spanish, French, Italian, Arabic, Korean, etc,
.Q5: What should I do to choose the best machine for us?
A5: 1) Tell me the material you want to fill, we'll choose the suitable type of machine for you to consider. 2) After choose the suitable type of machine, then tell me the filling capacity you need for the machine. 3) At last tell me the inner diameter of your container to help us choose the best diameter of the filling head for you.
Q6: Do you have manual or operation video for us to know more about the machine?
A6: Yes, we will send you the manual and operation video after you ask for us.
Q7: If there's some spare parts that broke, how to solve the problem?
A7: Yes, we will send you the manual and operation video after you ask for us.
Q8: If there's some spare parts that broke, how to solve the problem?
A8: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
Q9: Do you have manual or operation video for us to know more about the machine?
A9: Yes, we will send you the manual and operation video after you ask for us.
Q10: If there's some spare parts that broke, how to solve the problem?
A10: Yes, we will send you the manual and operation video after you ask for us.
Q11: If there's some spare parts that broke, how to solve the problem?A11: First of all, please take the pic or make a video to show the problem parts. After the problem is confirm from our sides, we'll send you the spare parts for free, but the shipping cost should be paid by your side.
