1bz-3.0 Heavy-Duty Disc Harrow High Quality Heavy Disc Harrow
| US$2,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
1BZ-1.8/2.2/2.5/3.0/3.4
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Green
Warranty
One Year
Price
Best
Colour
Many
Quality
Best
Sale
Hot
Transport Package
Iron Frame
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432809000
Production Capacity
200 Sets/Month
Product Description

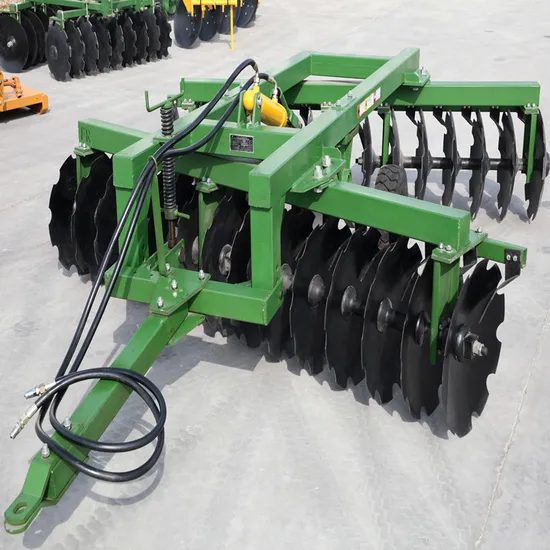

Heavy-duty disc harrowThe series heavy-duty offset disc harrow are mainly used for cleaning away stubble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Specifications:
| Model | Unit | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 |
| Overall size | cm | 480*200*134 | 482*244*134 | 532*288*134 | 532*332*134 | 582*376*134 |
| Weight | kg | 1050-1100 | 1250-1300 | 1380-1430 | 1500-1550 | 1650-1700 |
| Working width | m | 1.8 | 2.0 | 2.5 | 3.0 | 3.4 |
| Working depth | cm | 20 | ||||
| Disc space | mm | 230 | ||||
| Qty. of disc | pc | 16 | 20 | 24 | 28 | 32 |
| Dia. Of disc | mm | 660 | ||||
| Ground clearance | mm | >160 | ||||
| Productivity | ha/h | 1.1 | 1.3 | 1.4 | 1.7 | 1.9 |
| Matched power | hp | 65-80 | 75-90 | 80-100 | 90-100 | 100-120 |
| Linkage | Trailed | |||||
| Model | Unit | 1BZ-3.9 | 1BZ-4.4 | 1BZ-5.3 | 1BZ-6.2 |
| Overall size | cm | 582*418*136 | 582*465*136 | 716*288*150 | 750*656*150 |
| Weight | kg | 2400-2450 | 2600-2650 | 3250-3300 | 3750-3800 |
| Working width | m | 3.9 | 4.4 | 5.3 | 6.2 |
| Working depth | cm | 20 | |||
| Disc space | mm | 230 | |||
| Qty. of disc | pc | 36 | 40 | 48 | 56 |
| Dia. Of disc | mm | 660 | |||
| Ground clearance | mm | >160 | |||
| Productivity | ha/h | 2.4 | 3 | 4 | 5 |
| Matched power | hp | 120-150 | 130-150 | 150-180 | 160-180 |
| FOB Price | unit | 4350USD | 5000USD | 6250USD | 7200USD |
| Linkage | Trailed | ||||
