US$10.00-100.00
|
10 Rolls
(MOQ)
|
Basic Info.
Certification
ISO/TS16949, ISO9001
Classification
Brake System
Drum Brakes Classification
Brake Drum
Main Market
South America, North America, Eastern Europe, Mild East, Southeast Asia, Africa, Western Europe, Eastern Asia, Northern Europe, Oceania, Southern Europe, Central America, South Asia, Domestic Market
Transport Package
Sea & Air Transport
Specification

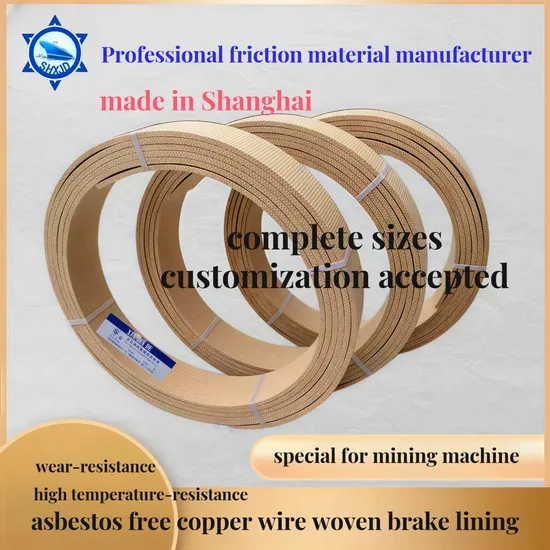

asbestos free brake lining roll
Production Capacity
10000pieces/Year
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 50.00cm
Package Gross Weight
50.000kg
Product Description
Basic Info.
Model No | XJD-20 | Certification | ISO/TS16949, ISO9001 |
Classification | Deceleration system part | Price | Negotiable |
Main Market | North America, Africa, Mild Eastern, Western Europe, Oceania, Domestic Market | Minimum order quantity | one pallet |
Active State | Static Friction | Collor | Yellow /Red,according to yor needs |
Description | Woven Cotton Brake Lining | Coefficient | 0.6 |
Width | 600mm | Thickness | 3mm-30mm |
Used in | Mooring Winches, Oil drilling, Cable crane, Mining Machinery | Transport package | Pallet |
Specification | as required | Trademark | XJD |
Origin | Shanghai, China | HS Code | 68138900 |
Prodution Capacity | 50 Tons / month | | |
Packaging&Delivery
Package Size | 100cm* 100cm* 100cm |
Package Gross Weight | 350KG |
Suggested operating range
Maximum pressure: psi250
Friction speed: ft/min 5000
Maximum intermittent temperature 650 ºF (340 ºC)
Maximum continuous temperature 600 ºF (315 ºC)
Technical Performance:
Interface Temperature | Friction Coefficient | Wear rate (cm3/nm) |
100ºC | 0.40-0.65 | ≤ 0.70×10-7 |
150ºC | 0.35-0.65 | ≤ 1.10×10-7 |
200ºC | 0.30-0.60 | ≤ 1.30×10-7 |
size
colour | yellow, red and color can according to your needs |
thickness | 4mm-30mm |
width | 30mm-600mm |
length | 10m, 15m, 20m,.... according to your needs |
Characteristics of woven resin brake lining / pad
1. Good wear resistance
2. Good heat resistance
3. High tensile strength
4. Can be applied to riveting Frequent Asked Questions:
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: Can you have different colours?
A: Yes, we can customize over 1000 kinds of colours, PLZ refer to our colour card to pick up which is your favorite.
Q3: Can you offer the sample to test?
A: Yes, we can offer free sample to test, customer only need to pay the shipping charge.
Q4: What's your acceptable payment term?
A: Our usual payment term is L/C, T/T, Western Union.
Q5: Can I visit your factory?
A: You are warmly welcomed to visit our factory, and we offer free hotel and free car service.
Q6: How long is your warranty period?
A: Total free warranty service of Starye products is one-year(Artificial damage and incorrect use is not included).
Q7: How can I get more detail of this product?
A: Please contact with our sales team online.
Q8: What is your terms of payment?
A: T/T 30% as deposit, 40%when produce and 30% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q9: How about your delivery time?
A: Generally, it will take 10 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q10: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q11: How do you make our business long-term and good relationship?
A: 1.We keep good quality and competitive price to ensure our customers benefit ;
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
