Bottle Embryo Series Injection Molding Machine Hxm228 Pet
| US$17,500.00-98,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HXM228 PET
Type
Plastic Injection Molding Machine
Structure
Horizontal
Plastic Type
Pet
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
380V,50gzm According to Countries
Showroom Locate
Maylasia,Russia,Turkey,Uzberkistan
Condition
New
Injection Weight
1116 G
Space Between Tie Bar
570*520 mm
Machine Weigh
6.9 Ton
Transport Package
Standard Package
Specification
6.5*1.34*2.1
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year
Product Description
Specializing in PET series of injection molding machines1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;

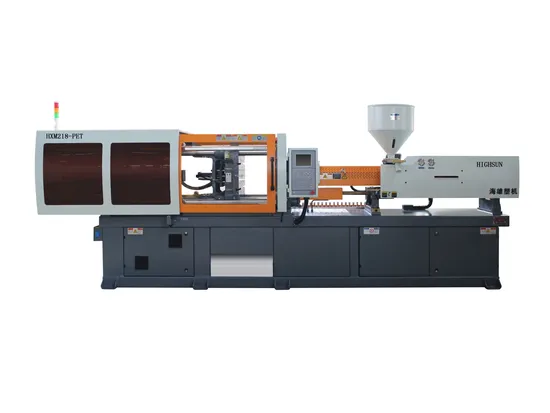

1.Picture
| MODEL:HX(*)228PET | |||
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 65 |
| SCREW L/D RATIO | L/D | 24 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 962 | |
| INJECTION WEIGHT(PET) | g | 1116 | |
| INJECTION PRESSURE | MPa | 156 | |
| INJECTION RATE | g/s | 447 | |
| PLASTICIZING CAPACITY | g/s | 76 | |
| SCREW SPEED | rpm | 190 | |
| CLAMPING UNIT | CLAMP FORCE | KN | 2280 |
| OPEN STROKE | mm | 520 | |
| MAX. MOULD HEIGHT | mm | 580 | |
| MIN. MOULD HEIGHT | mm | 200 | |
| SPACE BETWEEN TIE-BARS (W×H) | mm | 570*520 | |
| EJECTOR STROKE | mm | 100 | |
| EJECTOR FORCE | KN | 160 | |
| EJECTOR NUMBER | n | 9 | |
| OTHERS | PUMP PRESSURE | MPa | 17.5 |
| MOTOR POWER | KW | 38 | |
| HEATING POWER | KW | 22.7 | |
| MACHINE DIMENSION (L×W×H) | m | 6.5*1.34*2.1 | |
| MACHINE WEIGHT | t | 6.9 | |
| OIL TANK | L | 281 | |
2.Application
3.Processing,assembling production line
5.Loading containers
6.Customer case
Client in Uzbekistan produce PET preform for minaral water factory.
7.Client in Malaysia
