US$30,000.00-200,000.00
|
1 Set
(MOQ)
|
Basic Info.
Material Processed
Plastic Bottle
Computerized
Computerized
Certification
ISO9001:2008, CE
Function
to Washing Recycling HDPE Bottle
Raw Material
PE PP ABS PS PC Waste Rigid Plastic
Usage
Plstaic Washing Line
Dimension(L*W*H)
35m*10m*5m
Processed
Crushing-Washing-Drying
Transport Package
Container
Production Capacity
300kg/H-5000kg/H
Packaging & Delivery
Package Size
3200.00cm * 500.00cm * 350.00cm
Package Gross Weight
36000.000kg
Product Description
HDPE Milk Bottle/LDPE Agricultural Film/PP Woven Big Bag/PE Regrind Plastic Recycling Washing Line
Product Description
The HDPE recycling line is used to processing HDPE materials, recycled HDPE scraps can produce HDPE pellets and kinds of HDPE products.HDPE is mainly for producing kinds of package materials, such as HDPE bottles, HDPE barrels. For big size HDPE materials recycling, shredder is necessary before crusher, and for normal size HDPE materials recycling, HDPE can be crushed directly.Different application of HDPE materials, different contaminant, different treating process will be designed according to the raw materials.The HDPE recycling line, also suitable for the similar size PP materials recycling.

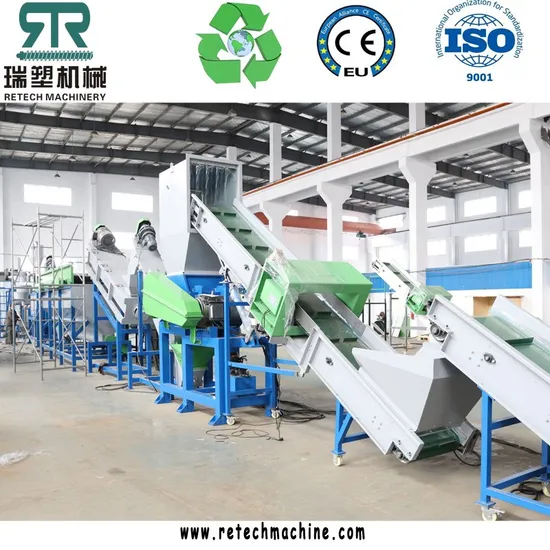

Detailed Photos
Product Parameters
Type
| RS500
| RS1000
| RS2000
| RS3000
|
Capacity(kg/h)
| 500
| 1000
| 2000
| 3000
|
Energy consumption(KWH)
| 119
| 165
| 209
| 294
|
Installation power(KWH)
| 183
| 254
| 322
| 452
|
Dimension: L*W*H(m)
| Depends on factory layout
| Depends on factory layout
| Depends on factory layout
| Depends on factory layout
|
Chain conveyor
| chain plate width(MM)
| 800
| 1000
| 1400
| 1600
|
Drive motor (KW)
| 2.2
| 3
| 4
| 5.5
|
Shredder
| Grind chamber(mm)
| 840*1570
| 1120*1570
| 1400*1570
| 1960*1570
|
Motor power(KW)
| 37
| 55
| 75
| 55*2
|
Crusher
| Grind chamber(mm)
| 500*700
| 700*1000
| 700*1200
| 800*1200
|
Motor power(KW)
| 55
| 75
| 90
| 132
|
Belt conveyor
| Belt width(mm)
| 600
| 800
| 800
| 1000
|
Motor power(KW)
| 2.2
| 3
| 3
| 3
|
Washing tank
| Dimension of tank(mm)
| 5000mm×1200mm
| 6000mm×1600mm
| 8000mm×1800mm
| 10000mm×1800mm
|
No. of thumb-wheel(pcs)
| 5
| 6
| 8
| 5
|
Screw conveyor
| Screw diameter(mm)
| 250
| 300
| 400
| 500
|
Motor power(KW)
| 2.2
| 3
| 4
| 5.5
|
Friction washer
| Screw diameter(mm)
| 300
| 400
| 450
| 560
|
Motor power(KW)
| 11
| 15
| 22
| 30
|
Centrifugal dryer
| Rotor diameter(mm)
| 460
| 500
| 550
| 650
|
Motor power(KW)
| 15
| 22
| 30
| 45
|
Hot air pipe dryer
| Pipe diameter(mm)
| 133
| 159
| 169
| 219
|
Heating power(KW)
| 36
| 36
| 48
| 55
|
Electrical cabinet
| PLC controller
| ◯
| ◯
| ◯
| ◯
|
Button type
|
|
|
|
|
High-speed hot cleaning
| ◯
| ◯
| ◯
| ◯
|
Color sorter
| ◯
| ◯
| ◯
| ◯
|
Man power(person/shift)
| 3
| 4
| 4
| 5
|
Delivery time(day)
| 60-70
| 70-80
| 80-90
| 100-110
|
Warranty(month)
| 12months
| 12months
| 12months
| 12months
|
Technical assistance
| Egnineer available to service machinery overseas
| Egnineer available to service machinery overseas
| Egnineer available to service machinery overseas
| Egnineer available to service machinery overseas
|
Certifications
Packaging & Shipping
Our Advantages
Features
Solution
Order Flowing Process:
Customer requirements →Scheme designed →confirmed by customers →order fixed →manufacturing →trial running in our factory →confirmed by customers →shipped →engineer available overseas →whole life after sales services
About us:
Retech team has more than 15 years experience in plastic recycling feild.We can do customized design according to customer's special requests.
Retech Machinery is an experienced and professional manufacturing for series plastic washing recycling machine/ plastic granulating recycling machine including PET bottle recycling machines, PE PP film recycling machines, plastic PE PP PS ABS PET PC PVC LD HD LLD BOPP granulating line, water treatment for the waste water from washing line, and auxiliary equipment for plastic recycling....
If you are interesting more details of our products, please contact with us no hesitation!
