PU Foaming Fixture Line for Refrigerator and Chest Freezer

Product Description

PU Foaming fixture line for refrigerator and Chest Freezer
Generally speaking, the line introduces linear confirguation with non-freon design and the hardening position as eight-position. The line is composed with eight units of cabinet-foaming fixture, a set of injecting manipulator, a set of both-way carrying car for loading & unloading cabinet, a set of water-heating system, a set of safety exhausting system, a set of safety system, a set of safety fencing together with electronic controlled system for the line. (Note: The safety fencing is built by buyer with the drawing and technical requirement giving by seller, all the equipments doesn't include molds)
This foaming line is designed only for refrigerator not for freezer. Because of the freezer inner is aluminium plate, and that refrigerator inner is ABS. The foaming mold of freezer is expand mold, and that the foaming mold of refrigerator is fixed mold. The expanding mold and jig outside should be make for freezer foaming in addition.
The line comprises several processes including loading, transporting, clumping, injecting, hardening, cabinet-unloading with characteristics of beautiful appearance, high production efficiency, low labour intensity and etc.
The main technical performance parameters
1. L*B*H: External dimensions of the line: 40000*7000*4000 (for reference)
2. H*W*D: Specification of the cabinet : (1800-2000) * (1100-1850) * (500-650)
3. Foaming agent: POL+ISO type
4. Harden time: Adjustable
5. Mold temperature: 30--60degree temperature adjustable
6. Injecting pattern: Side of single-gun(opposite of the cabinet loading)horizontal injection
7. Working position: 8
8. Index of production: 60S(based on 5 min of the harden time)
9. Power supply: 380V, 50Hz, voltage: 24V of Control component outside the cabinet
10. Power capacity: 120KW(for reference)

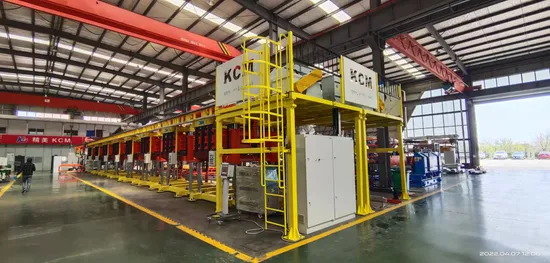

More Photos for Reference
