US$38,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Separation Mode
Short Path Distillation
Operating Type
Continuous Type
Centrifuge Type
Short Path Distillation
Distillation Equipment Type
Molecular Distillation Equipment
Extraction Tower Type
Molecular Distillation
Transport Package
Plywood Cases
Production Capacity
1000sets
Product Description
Product Description

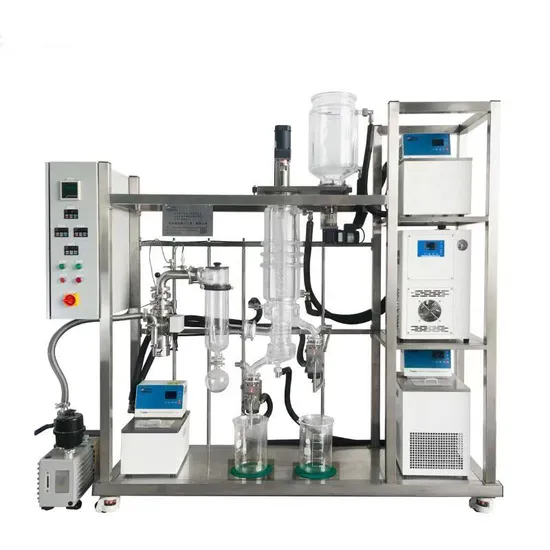

Short Path Distillation Machine Short path distillation/Molecular distillation is a special liquid-liquid separation technology, which is different from traditional distillation on the different boiling point. This is a kind of distillation in high vacuum environment, for the difference of material molecular movement free path, was carried out in the heat sensitive material or high boiling point material distillation and purification process. Short path distillation is mainly used in chemical, pharmaceutical, petrochemical, spices, plastics, oil and other fields. Detailed Photos
Product Parameters
Model | YMD-80 | YMD-100 | YMD-150 |
Effective evaporation area (m2) | 0.1 | 0.15 | 0.25 |
Yield at end of 8-10hrs per day (L) | 2-5 | 3-8 | 6-15 |
Barrel diameter (mm) | 80 | 100 | 150 |
Feeding funnel volume (L) | 1.5 | 2 | 2 |
Feeding rate (g/h) | 500-750 | 750-1500 | 1500-3000 |
Motor power (w) | 120 | 120 | 120 |
Maximum speed (rpm) | 0-500 | 0-500 | 0-500 |
Distillation receiving flask (L) | 1 | 2 | 3 |
Recicle receiving flask (L) | 1 | 2 | 3 |
Operation Temperature (ÂșC) | 0-200 | 0-200 | 0-200 |
Detailed parts explaination
SN. | Description |
1 | Jacketed feeding vessel with sight glass |
2 | Automatic and continuous feeding pump |
3 | Motor to drive rotation with mechanical sealing or magnetic sealing |
4 | Jacketed evaporator with internal condenser |
5 | External condenser with sight glass |
6 | Multifunction condenser (Both with dry ice cold trap and cooling coils condenser) |
7 | Collection pump(Distillate)for automatic and continuous collection |
8 | Collection pump (Residue) for automatic and continuous collection |
9 | Full jacketed pipe (feeding and collection section) |
10 | Control cabinet |
11 | Heating circulator for feeding vessel and pipeline |
12 | Heating circulator for jacketed evaporator |
13 | Heating circulator for reside collection section |
14 | Heating & cooling Circulator for internal condenser and distillate collection section |
15 | Cooling circulator for external condenser |
16 | Cooling circulator for multifunction condenser |
17 | Rotary vane vacuum pump |
18 | Molecular pump or Diffusion pump |
