China Galvanized Aluminum Sheet Stainless Steel Coil Cutting Machine/Cut to Length Line

Product Description

COMPANY PROFINE
Jinan Eagle CNC Machine Co., Ltd located in Jinan Economic Development Zone, Shandong Prov., China, is a professional manufacturer of metal coils and sheets processing machinery. It is one of the few specialized, large-scale, middle and high-end suppliers of coil processing equipment in China.
COMPANY HONOR

Cut to length line ECL series

A cut to length line is generally used for jobs like uncoiling, straightening, measuring, cross-cutting to length and stacking of various materials such as cold or hot rolling carbon steel, tinplate, stainless steel, and other kinds of metal with coated surfaces.
Features of Cut to Length Line:
1. Our cut to length line uses a roll feeding, AC servo drive.
2. It has a fully digital length control system that ensures fast positioning with little error.
3. It has a hard chrome plated surface and is durable and abrasion resistant.
4. It is used together with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment.
5. Our cut to length line is suitable for hot rolling carbon steel, tinplate, stainless steel, and other kinds of metals with coated surfaces.
Advantage:
1. High degree of automation, easy & reliable operation
2. High length precision, high sheet flatness
3. Good order stacking
ECL series cut to length line is composed of the followings:

1	Entry coil car	1 set
2	Uncoiler	1 set
3	Outboard support	1 set
4	Feeding table	1 set
5	Leveler	1 set
6	Loop table	1 set
7	Side guide	2 pairs
8	Servo feed roll	1 PC
9	Shear	1 PC
10	Conveyor belt	1 set
11	Stacker	1 set
12	Blower	1 set
13	Hydraulics	1 set
14	Electrics	1 set

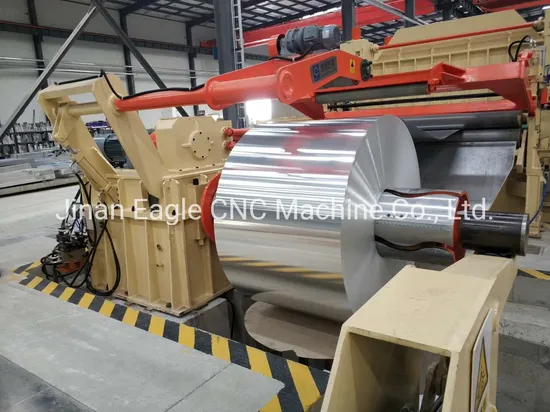

Uncoiling Unit
This uncoiling unit of our cut to length line allows several coil stocks to be pre-placed on the loading station. It is available with single head or double heads to suit different requirements.
Leveler
The leveler of our cut to length line may have various designs, from 2H, 4H or 6H. It can be flexibly controlled and can carry out good leveling of the plate materials. Its leveling roll is made of roll steel with a chrome-plated surface. It is of good abrasion resistance and long service life.

Feeder and Shear
Our cut to length line employs a pair or two pairs of feed rolls, driven by an AC servo motor, to feed the strip to the set length precisely. They ensure fast positioning with little error. These feed rolls are compatible with a hydraulic shear or an air-clutch shear to carry out fast shearing and convenient clearance adjustment. It can be equipped with a roll type or a belt type conveyor.
Stacking Unit
Our cut to length line can be equipped with a pneumatic or electromagnetic stacking unit. It is equipped with a blower to protect the surface from scraping. Both longitudinal and transverse stacking are available.

Besides,there are also other types of ECL series cut to length lines,all the cut to length line are sa follows:

Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Postscript
Years of practice make us deeply understand the inherent requirement of modern production, insist to do production of the user's strong backing, insist to provide the industry's most sophisticated and efficient slitting equipment.
We offer high quality machines and first class service to our clients, we sincerely hope our machines can make many years prosperity for our customers.
