Kwh Meter 1 Dts-18L Three Phase Four Wire DIN Rail

Product Description

DTS-18L Three Phase Four Wire DIN Rail Energy Meter
DTS-18L Information
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
TAINIHAN & LEDUN have a complete range of DIN-mounted electricity meters for different applications, the meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21.
DTS-18L Specifications

1	Type	DTS-18L LCD Display
2	Accuracy	Class 1
3	Rated Voltage (Un)	3 X 110V/220V/230V/240V/380V/400V
4	Base Current (lb)	5A, 10A,15A,20A,30A or other
5	Max Current (Imax)	20A, 40A, 60A, 80A or other
6	Frequency (Hz)	50Hz Or 60Hz (±5%)
7	Starting Current (mA)	0.4% Ib
8	Power Consumption of Current	≤2W 10VA Per Phase
9	IP Class	IP51
10	AC Voltage Withstand	2KV for 1 Minute
11	Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
12	Operating Temperature	-20ºC To +55ºC
13	Storing Temperature	-40ºC To +70ºC
14	Operating Humidity	≤75%
15	Storing Humidity	≤95%

DTS-18L Function in Display and monitoring
Active Energy: Kwh 6+2
DTS-18L Dimensions
DTS-18L Diagram

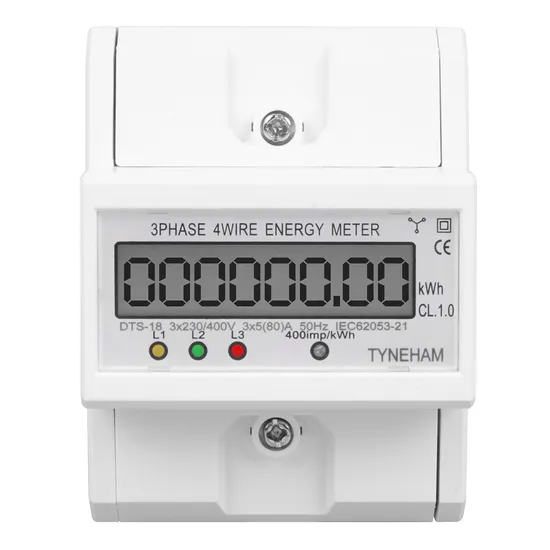

DTS-18L Front Side Photo
DTS-18L Left Side Photo
DTS-18L Back Side Photo
DTS-18L Right Side Photo
DTS-18L Top Side Photo
DTS-18L Bottom Side Photo
