Basic Info.
Species
Die Cutting and Creasing Machine
Placing Form of Template
Horizontal
Die Cutting Tool
Metal Mold
Computerized
Computerized
Automatic Grade
Automatic
Application
Paper Packaging Materials, Insulating Materials, Aluminum Foil
Die Cutting Speed
70-180times/Min.
Max.Mould Dimension
750X600X180mm
Max. Width of Foil Roll
620mm
Max.Diameter of Roll
600mm
Transport Package
Export Wooden Case Packing
Specification
3000x1500x1800mm
Production Capacity
1 Set/Month
Product Description

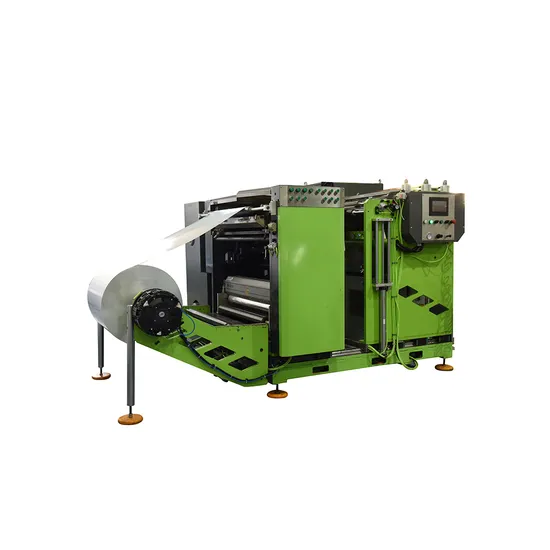

Description The Aluminum Lid Die-Cutting Machine can be used to produce and process the heat sealing lid cover of aluminum foil composite coil. After uncoiling the printed composite aluminum foil coil, the embossing effect is processed by the embossing unit. The continuous material detection optical eye controls the tension of the master coil, servo feeding to the die cutting, and the waste edge is pulled and discharged. Performance 1.The die cutter accessories are made of imported DC53 steel, which is durable and stable after heat treatment and slow wire processing. 2.The embossing unit adopts laser engraving surface treatment, with clear and uniform embossing effect and durability. 3.The design of the tool changing die is excellent. It can be unloaded and pulled directly from the front, which is safe and convenient.
Model | DC-620 |
Max. Width of Foil Roll | 620mm |
Max.Diameter of Roll | Φ600mm |
Foil Inner Diameter | Φ76mm |
Die Cutting Speed | 70-180times/min. |
Max.Mould Dimension | 750x600x180mm |
Embossing Roll Dimension | Diameter Φ120mm,Length 600mm |
Main Motor | 5.5KW |
Servo Motor | 2.2KW |
Semi Tension Controller | 5KG,Magnetic |
Auto Deviation Correction | 110 Step Motor Control |
PLC Brand | Mitsubishi |
Machine Size | 3000x1500x1800mm |
Machine Weight | 3500KG |
1: Warranty for machines and moulds? A: We gurantee a period of 24 months from the date of machine & mould installation and setting to work. 2.Q: What about leadtime ? A: Normally the leadtime is 60days after we receive the deposit and confirm the details. All the press machines we use is the best quality in China Yangli brand. The press machine leadtime from Yangli is 50days, the best leadtime we can give is 60days. 3.Q: What's the lead time for moulds? A: Normally the mould leadtime is 45 days after we confirm all the details with customer. Our professional mechanical enginners from Austria will design the mould according to the samples from customer, or by the specifications offered by customers. 4.Q:What kinds of mould you can make? and what is your strong point for the moulds? A: we can make wrinkle wall mould and smooth wall mould both. For wrinkle wall mould we can make, 7-9" pan, fish pan, bbq pan. For smooth wall mould we can make muffin cup, and cake cup, tar cup,etc. We can also make 2 or 3 and 4 compartment conatiner moulds as long as you offer us sample or specifications. 5: How to purchase raw material or lubricating oil? A: SE can support every purchase work for all our customers, to help you set up a matured factory at the fast step. 6:How to install machine and train our staff on our factory? A: Yes, we do. We'll send our engineers to your factory to install, test machines and give your workers training guidance.
