Industry Leading High Quality Highsun Factory Injection Molding Machine

Industry Leading High Quality Highsun Factory Injection Molding Machine

US$71,900.00-75,300.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM538-PET
Type
Injection Blow Molding
Structure
Horizontal
Plastic Type
Pet
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sales Service
Engineers Avaiable to Service Machine
Voltage
380V,50gzm According to Countries
Showroom Locate
Maylasia,Russia,Turkey,Uzberkistan
Condition
New
Injection Weight
3317 G
Space Between Tie Bar
860*810 mm
Machine Weigh
21 Ton
Transport Package
Standard Package
Specification
9.05*2.14*2.61 M
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Packaging & Delivery

Package Size
905.00cm * 214.00cm * 261.00cm
Package Gross Weight
21000.000kg

Product Description

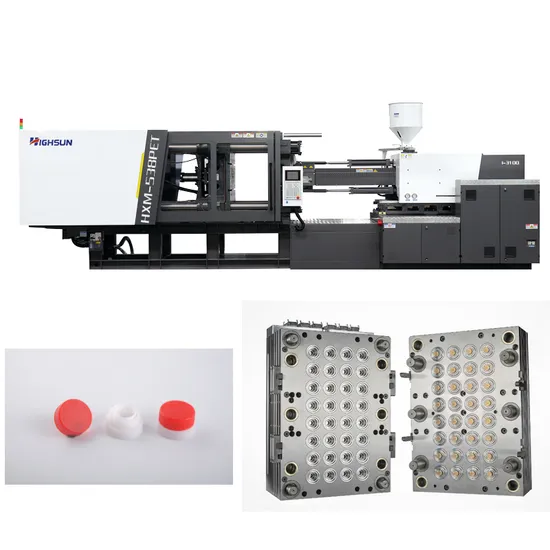

1.Picture
2. Specifications
MODEL:HX(*)538PET
TECHNICAL PARAMETER TABLE
INJECTION UNIT SCREW DIAMETER Mm 95
SCREW L/D RATIO L/D 24
INJECTION CAPACITY (THEORETICAL) cm3 3015
INJECTION WEIGHT(PET) g 3317
INJECTION PRESSURE MPa 149
INJECTION RATE g/s 700
PLASTICIZING CAPACITY g/s 95
SCREW SPEED rpm 130
CLAMPING UNIT CLAMP FORCE KN 5380
OPEN STROKE mm 830
MAX. MOULD HEIGHT mm 830
MIN. MOULD HEIGHT mm 330
SPACE BWTWEEN TIE-BARS (W×H) mm 860*810
EJECTOR STROKE mm 230
EJECTOR FORCE KN 181
EJECTOR NUMBER n 17
OTHERS PUMP PRESSURE MPa 17.5
MOTOR POWER KW 55
HEATING POWER KW 37.85
MACHINE DIMENSION (L×W×H) m 9.05*2.14*2.61
MACHINE WEIGHT t 21
OIL TANK CAPACITY L 1156

Specializing in PET series of injection molding machines
1.Adopt the special designed screw and large torque melt motor, in order to facilitate PET raw materials plasticizing and molding;
2.The ejector system can well meet the production of PET products;
3.With the high-power motor-pump system, it can achieve shorter cycle time;
3.Application
4. Actual shooting of trial model
Refernce
Machine: HXM 418-PET Machine: HXM 358-PET
1L bottle preform Bottle preform
Mould: 48 cavities Mould: 48 cavities
Weight: 30 g Weight: 12 g
Cycle time: 22s Cycle time: 17s
5. Cabinet case
Transportation by sea or rail to Mexico, Bangladesh, Turkey, Ethiopia, Algeria, Nigeria, Saudi Arabia, Iran, Russia, Sudan, Thailand, Peru and other countries.
6. Workshop
We have six workshops, which are machine development workshop, machine storage workshop, spare parts storage workshop.
1 workshop: SP(Middle-speed injection molding machine) and HXYD(Fully-electric and high-speed injection molding machine) production R & D workshop, also stored in the injection molding machine production required parts.
2 workshop: HXM(Servo energy injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 128tons, 158tons, 418tons, 478tons, HXH 260tons, 280tons, 430tons and so on.
3 workshop: HXM(Servo energy injection molding machine), PVC injection molding machine, PET injection molding machine, HXS(Clear two-color injection molding machine) and HXH(High-speed injection molding machine) production R & D workshop. Storage of manufactured machine, such as HXM 98tons, 268tons, from 538tons to 2500tons, HXH 160tons, 200tons, 350tons, 380tons, HXS160tons, 200tons and so on.
4 & 5 workshop: HIGHSUN's independent R & D workshop, automatic processing center. According to customer feedback to the performance of the machine constantly improve, to provide customers with better injection molding machines.
6 workshop: Stored in screw barrel, hopper, hydraulic motor, thermocouple, valve, sheet metal injection molding machine accessories.
7. HIGHSUN
HIGHSUN is one of the most professional lnjection Molding Machine manufacturer with morethan 50 years' history (founded 1973)in Ningbo, China.
As one of the leading innovator and developer of lniection Molding Machine, HIGHSUN has the world's first class production plant occupied more than 100 million square ft; equipped with the most advanced CNC machining system and processing equipments & inspection devices (CNC utilizationratio: above 83%), achieve with mass production with higher-quality and quicker-delivery.
Production capacity may reach 7000sets per year. Supply variety of series with clamping force from 98ton to 2500ton coverage with HXM(servo drive), HXH (high-speed performance), SP(middle-speed), HXYD(Hybrid & Full electric), HXZ(two-platen), HXS(double color) and special solutioras PET series, PVC series etc.
Realized more than 110million US$ sales in 2018, constantly keep 15% increase in sales in the past 3years; and from 2014 to 2018, a fifth consecutive HX awarded TOP-3 leader by CPIMMA for comprehensive strength of IMM manufacture and develop.
Based on strict management,superior quality, stressing reputation and paying attention to service. HIGHSUN hot sale to Europe and United States, Asia, Africa and the world, won majority ofcustomers good reputation and recognition.
8. Certification
