R80vt PRO Variable Speed Knuth Radial Drilling Machine with Touch Screen and Servo Motor

Product Description

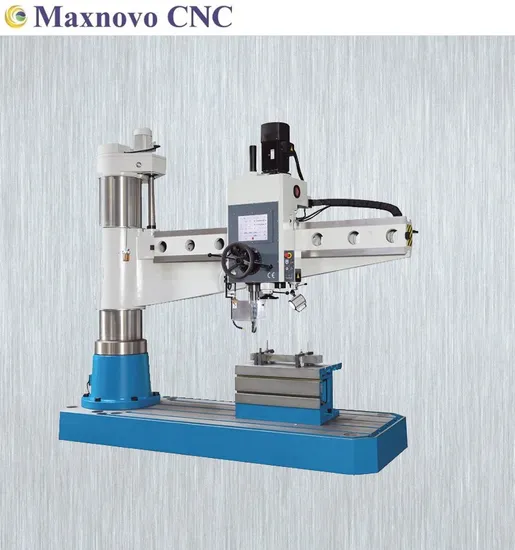

MM-R80VT PRO - Universal Hydraulic Radial Arm Drilling Machine with Large Touch Screen and Servo Motor- MAXNOVO MACHINE
This kind of MM-R80VT PRO from MAXNOVO MACHINE represent the new generation of the widely used heavy duty Radial Drilling Machine. The advanced features of this Servo-Conventional Radial Drilling Machine are the operation via Large Touch Screen and the Spindle Feed driven by High Quality Servo Motor. They allow precise drilling, countersinking, reaming of oversize workpieces, thread cutting and are perfect solution for single parts and small batch productions. The wide range of applications makes this radial drill press is ideal for mechanical workshops, repair shops, machine construction and etc.
Product Description
Heavy Duty 80mm Variable Speed Radial Drilling Machine with Large Touch Screen and Servo Motor Driven Quill Feed
Main Feature :
Convincing Arguments: Quality, Efficiency and Price - Maximum drilling capacity in steel up-to 80 mm
- Electronically Controlled Servo Quill Feed with Large Touch Screen Display
- Servo Motor-driven quill feed
- Rigid design with proven high stability
- Drilling depth is electronically set and the input value is checked by the system
- Various alarm screens warn the operator in case of operational errors and display information on the operational state
- Measuring units for input and display can be selected by the operator (mm or inch)
- The high-performance coolant system enabled at the touchscreen and will be turned on and off as a function of the main spindle
- The machine has 2 gear steps, and the rpm can be infinitely varied and displayed at the monitor
- The Servo Motor provides infinitely variable control of the quill feed -- upon reaching the preselected drilling depth, the quill automatically returns to the starting position
- Base, column, boom and gear head are made of premium high-quality cast
- Major design features include a large column and highly torsion-resistant boom
- Boom height adjustment via a powerful motorized drive and vertical spindle
- The boom lifting gears run in an oil-bath for maximum reliability and minimum wear
- Swivel axis and travel axis feature extremely smooth operation to make production work easier
- Drill head and column can be clamped/released together or separately
- Boom can be moved vertically without losing the spindle-to-bore alignment
- The control software provides recommendations for rpm and feed in relation to desired drill size
- Thread cutting is, however, completely manual, operator changes the quill's rotational direction upon reaching the drilling depth
- Operator sets the boom height by touching the respective icon, whereupon the system automatically releases and fixates the hydraulic clamps, turns off the lift motor and considers all set limit stops
- Certificate of Original ( CO, FORM A, FORM E, FORM F )
Product Parameters
Technical Data :

Product Name :	Heavy Duty Radial Drilling Machine with Touch Screen
Product Item :	MM-R80VT PRO
Max. Drilling Capacity (in steel) :	Ø 80 mm
Max. Drilling Capacity (in cast iron) :	Ø 105 mm
Max. Tapping Capacity (in cast iron) :	M 60
Max. Tapping Capacity (in steel) :	M 52
Max. Drilling Depth :	400 mm
Clamping Type :	Hydraulic
Working Area
Cube Table Dimensions :	580 X 850 X 500 mm
Throat (Distance spindle-to-column) :	465 - 2550 mm
Spindle nose-to-table surface distance :	360 - 1560 mm
Drill Head Travel (Horizontal) :	2095 mm
Arm Stroke (Vertical) :	800 mm
Column Diameter :	Ø 450 mm
Headstock
Spindle Speed Range :	30 - 1400 RPM
Spindle Speed Steps :	Infinitely Variable Speed
Spindle Mount :	MT6
Feed
Spindle Feed Range :	0 - 350 mm / Rev
Spindle Feed Steps :	Infinitely Variable Speed
Drive Capacity
Main Motor :	7500 W
Stroke Motor :	2600 W
Connecting Voltage :	Three Phase 400V Voltage
Measures and Weights
Machine Dimensions :	3590 X 1250 X 3560 mm ( Length X Width X Height )
Packing Size :	3780 X 1400 X 2270 mm ( Length X Width X Height ) 3080 X 950 X 1050 mm ( Length X Width X Height )
Gross Weight :	7560 KGS
Standard Accessory :	Touch Screen Control Panel, Servo Motor for Spindle Feed, Cube Table, Coolant system, Work Lamp, Hydraulic Motor, Stroke Motor, Tools and Toolbox

High Precision Drilling Machine for Demanding Users !
Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy.
