US$0.30
1,000-2,999 Meters
US$0.26
3,000-4,999 Meters
Basic Info.
Kind
Thermoplastics Pipes
Contraction Percentage
<0.4%
Tensile Strength
41~50MPa
Product Name
Polyethylene PE Plastic Pipe Roll for Farm Sprinkl
Color
Black with Blue Stripe or as Required
Package
20′ or 40′ Container
Wall Thickness
SDR9 - SDR27
Max Nominal Pressure
0.6MPa-2.0MPa
Application
HDPE Pipe for Water Supply
Certificate
CE, SGS, ISO, CNAS, IAF
Connection
Butt Fusion, Socket Fusion
Working Temperature
- 40ºC to 40ºC
Usage
Irrigation;Municipal;Industrial
Characteristic
Good Flexibility, Corrosion Resistance, Excellent
Fearture
Corrosion Resistant, etc
Transport Package
Standard Export Packing
Specification
DN20-1600 mm
Production Capacity
500, 000t/Year
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
10.000kg
Product Description
Product Description

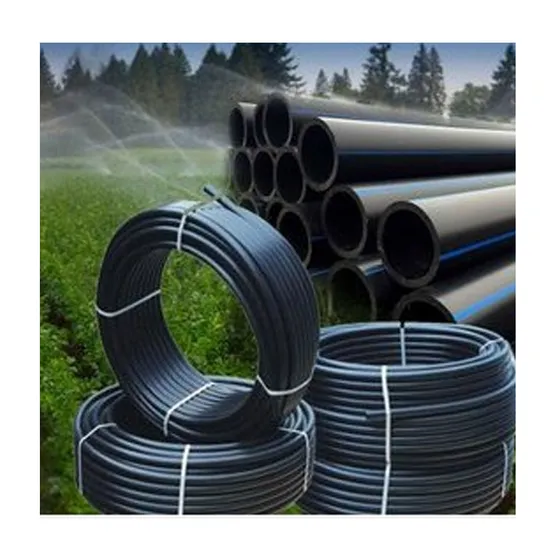

Poly Ethylene PE Plastic Pipe Roll for Farm Sprinkler Irrigation Pipe System
HDPE pipe introduce
PE pipe inner wall is smooth, and does not change with the use of time, small friction resistance, energy saving, pressure loss is about 30% smaller than steel pipe, can choose a smaller diameter than steel pipe. Good hygienic performance, no additives, no possibility of pollution of drinking water, ISO standard grading polyethylene material is 0 (the lowest level), do not moldy material, compared with some other commonly used plastic materials, polyethylene mildew resistance is much higher, long-term use also does not scale.
Features.
1. High toughness and good seismic performance;
2. The connection is reliable;
3. Low density, light weight, easy to handle and install
4. Can resist a variety of chemical media corrosion;
5. Excellent hydraulic performance, the wear resistance coefficient is only 0.009;
6. Long service life, up to 50 years;
7. Good hygiene and environmental performance;
8. Better resistance to slow crack growth (SCG) and rapid crack propagation (RCP).
Application of PE Pipe
PE water supply pipe can be used for general purpose pressure water transmission and drinking water transmission. His surface
color indicates that his use is mainly for water-related pipes (water supply pipes), gas pipes in yellow, fire-fighting pipes in
red and mining pipes.
There are mainly municipal buried water supply, building water supply (drainage), farmland irrigation, waterscape engineering and
so on. In water supply pipeline engineering, PE water supply pipe will eventually replace UPVC pipe. Product Parameters
PE100 | 0.4MPa | 0.5MPa | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa | 2.0MPa | 2.5MPa |
Outside Diameter | PN4 | PN5 | PN6 | PN8 | PN10 | PN12.5 | PN16 | PN20 | PN25 |
SDR41 | SDR33 | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 | SDR9 | SDR7.4 |
Wall Thickness (en) |
20 | - | - | - | - | - | - | 2.0 | 2.3 | 3.0 |
25 | - | - | - | - | - | 2.0 | 2.3 | 3.0 | 3.5 |
32 | - | - | - | - | 2.0 | 2.4 | 3.0 | 3.6 | 4.4 |
40 | - | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.5 | 5.5 |
50 | - | - | 2.0 | 2.4 | 3.0 | 3.7 | 4.6 | 5.6 | 6.9 |
63 | - | - | 2.5 | 3.0 | 3.8 | 4.7 | 5.8 | 7.1 | 8.6 |
75 | - | - | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 | 8.4 | 10.3 |
90 | - | - | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 | 10.1 | 12.3 |
110 | - | - | 4.2 | 5.3 | 6.6 | 8.1 | 10.0 | 12.3 | 15.1 |
125 | - | - | 4.8 | 6.0 | 7.4 | 9.2 | 11.4 | 14.0 | 17.1 |
140 | - | - | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 | 15.7 | 19.2 |
160 | - | - | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 | 17.9 | 21.9 |
180 | - | - | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 | 20.1 | 24.6 |
200 | - | - | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 | 22.4 | 27.4 |
225 | - | - | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 | 25.2 | 30.8 |
250 | - | - | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 | 27.9 | 34.2 |
280 | - | - | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 | 31.3 | 38.3 |
315 | 7.7 | 9.7 | 12.1 | 15.0 | 18.7 | 23.2 | 28.6 | 35.2 | 43.1 |
355 | 8.7 | 10.9 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 | 39.7 | 48.5 |
400 | 9.8 | 12.3 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 | 44.7 | 54.7 |
450 | 11.0 | 13.8 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 | 50.3 | 61.5 |
500 | 12.3 | 15.3 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 | 55.8 | - |
560 | 13.7 | 17.2 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 | 62.5 | - |
630 | 15.4 | 19.3 | 24.1 | 30.0 | 37.4 | 46.3 | 57.2 | 70.3 | - |
710 | 17.4 | 21.8 | 27.2 | 33.9 | 42.1 | 52.2 | 64.5 | 79.3 | - |
800 | 19.6 | 24.5 | 30.6 | 38.1 | 47.4 | 58.8 | 72.6 | 89.3 | - |
900 | 22.0 | 27.6 | 34.4 | 42.9 | 53.3 | 66.2 | 81.7 | - | - |
1000 | 24.5 | 30.6 | 38.2 | 47.7 | 59.3 | 72.5 | 90.2 | - | - |
1200 | 29.4 | 36.7 | 45.9 | 57.2 | 67.9 | 88.2 | - | - | - |
1400 | 34.3 | 42.9 | 53.5 | 66.7 | 82.4 | 102.9 | - | - | - |
1600 | 39.2 | 49.0 | 61.2 | 76.2 | 94.1 | 117.6 | - | - | - |
Product Name | HDPE PIPE |
Standard | GB/T13663-2000,ISO 4427-1:2007 |
Specification | 16-2000mm |
Pressure | 0.4MPa SDR41-2.5MPa SDR7.4 |
Main application | Water Supply, irrigation, and dredge system |
Guarantee | More than 50 years |
Our Advantages
Company Profile Our unmatched expertise enables us to serve our clients with utmost accuracy than ourindustry competitors. With more than 20 years' hardwork, we have established ourselves asa reliable and worthy supplier of plastic pipes and fittings. We ensure that the quality of ourrange meets the requirements of our clients. Our range finds applications in irrigation, watertransportation, drainage, dredging, sand&mud suction, gas transportation, geothermal, communication cable protection and construction.
We cater basically to European countries, North America countries, Sout America coun.tries, Oceania countries, Asian countries, Middle East, African countries and supply all overChina under the able guidance of our company's long-term planning strategy and view ofhonest and trustworthy value. Welcome customers to visit our factory, and go forward hand inhand with us!
