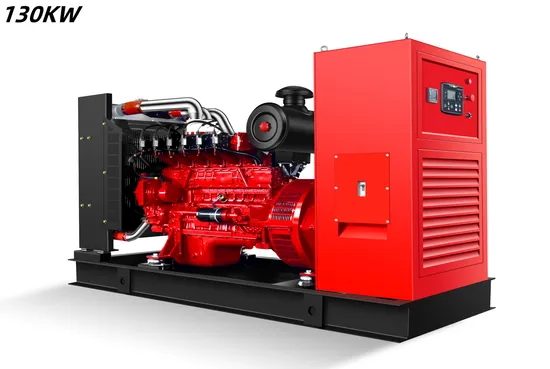

130kw Open Silent Power Gas Generator 3 Phase AC Silent Water-Cooled CNG LNG Natural Gas Electric Generator Set
Basic Info.
Model NO.
WL130
Output Type
AC Three Phase
Gas Source
Gas
Certification
CE, TLC, ISO, CCC
Power
50-200kW
Standard
Standard
Model
Wl130
Power Rating
130kw
Rated Speed
1500rpm
Frequency
50Hz
Rated Current
234A
Dimension
2850*1050*1500mm
Weight
1500kgs
Intake
Exhaust Water Cooled Turbocharged
Displacement
7.7L
Compression Ratio
12:1
Engine Oil Consumption
<0.3G/Kw.H
Exhaust Gas Temprature
625 Degree
Fuel Supply Method
Pre-Mix
Lubricating Oil Capacity
18L
Coolant Capacity
28L
Transport Package
Export Standard Packing
Specification
2850*1050*1500mm
Trademark
YSD
Origin
China
HS Code
8511509000
Production Capacity
5000 Set/Year
Packaging & Delivery
Package Size
315.00cm * 132.00cm * 180.00cm
Package Gross Weight
1600.000kg
Product Description
| NO. | ITEM | Data |
| 1 | Model | WL130 |
| 2 | Basic Power(KW) | 130 |
| 3 | Back up power (KW) | 130 |
| 4 | Rated speed | 1500rpm |
| 5 | frequency | 50HZ |
| 6 | Rated current(A) | 234 |
| 7 | Dimensions(mm) | 2850*1050*1500mm |
| 8 | Weight(kg) | 1500 |
| 9 | Rated voltage | 400V/230V |
| 10 | Exhaust gas temperature(ºC) | 625±50 |
| 11 | Excitation mode | brushless |
| 12 | Insulation class | H |
| 13 | Protection level | IP23 |
| 14 | Voltage regulation mode | automatic adjustment |
Q1: Are you a trading company or do you operate a factory?
A: We are proud to operate a factory, allowing us to ensure the highest quality.
Q2: What's the warranty period for your products?
A: Our products come with a generous warranty of 1 year or 1500 running hours, whichever comes first. Enjoy peace of mind with the option to extend the warranty, catering to your specific requirements.
Q3: What is the power range of our gas generator set?
A: Our gas generator set offers a versatile power range from 30KW to 1500KW, designed to meet diverse energy needs.
Q4: What is the Minimum Order Quantity (MOQ)?
A: Our minimum order requirement is just 1 set, providing flexibility for your purchasing decisions.
Q5: What's the typical delivery time for orders?
A: Delivery timelines are flexible and can be negotiated to best suit your schedule.
Q6: Do you offer OEM/ODM services?
A: Absolutely! We offer comprehensive OEM/ODM services, tailoring production to your specific requirements.
Q7: What are your payment terms?
A: We require a 30% TT payment in advance, with the remaining balance due before delivery. This ensures a smooth transaction process.
