Sinomech Model A450 Laminating Machine Speed 450 Mpm High-Speed Plastic Films/Paper Solvent Free Laminating Machine

Sinomech Model A450 Laminating Machine Speed 450 Mpm High-Speed Plastic Films/Paper Solvent Free Laminating Machine

US$130,000.00-180,000.00 1 Set (MOQ)

Basic Info.

Model NO.
A450
Classification
Solventless Laminating Machine
Application
Packaging Paper, Film Material
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
Pet Films, Paper
Glue Mixer
Included
Servo Motor
7PCS
Transport Package
Stretch Film Packing
Specification
6100(L)x3900(W)x2500(H)mm
Trademark
SINOMECH
Origin
China
HS Code
8441801000
Production Capacity
300

Product Description

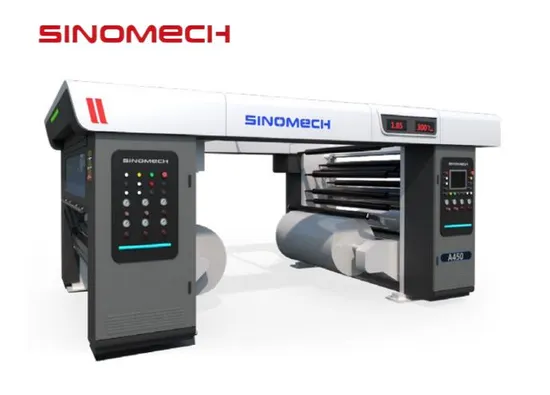

SINOMECH Model A450 Laminating Machine Speed 450 Mpm High-Speed Plastic Films/Paper Solvent Free Laminating Machine
Model A450 Solventless Laminating Machine, developed by Sinomech Corp., is suitable for high-speed solventless lamination of different types of plastic films, metalized films, Aluminum foils and papers. It is one of the most popular laminator models in the markets.
Product Parameters Product Parameters
Model NO. A450
Mulching Modes Two-Layers Lamination
Membrane Material BOPP/CPP/PET/PE/VMPET/VMCPP/BOPA/AL/PAPER etc.
Max.Laminating Speed 450m/min
Max web width 1050/1300/1500mm
Max Unwinding Dia 800mm
Max Rewinding Dia 1000mm
Core ID 3"or 6"
Installation power 68KW
Machine weight About 10,000 kg
Machine dimensions 6100(L) x 3900(W) x 2500(H) mm
Machine color Sinomech standard or as requested
Materials to be laminated
Materials Thinkness
BOPP 18-30 µm
CPP 20-60 µm
PET 12-30 µm
PE 30-120 µm
VMPET 12-30 µm
VMCPP 20-60 µm
BOPA 15-30 µm
AL 6-9 µm
PAPER 40-80 gsm
Company Profile Company Profile Sinomech Corporation, established in 2007, with the headquarter in Guangzhou, is the Chinese leading supplier of solventless laminating equipment and other related machines.
Exhibition Show Exhibition Show We are a Chinese laminator manufacturer. In order to keep ahead of the lamination industry, we participated in many exhibitions at home and abroad.
Certifications Certifications Sinomech has received international certificates of ISO9001, ISO14001, ISO45001, and ESG, etc. All the products are conformed to CE safety standards. Our Partners
