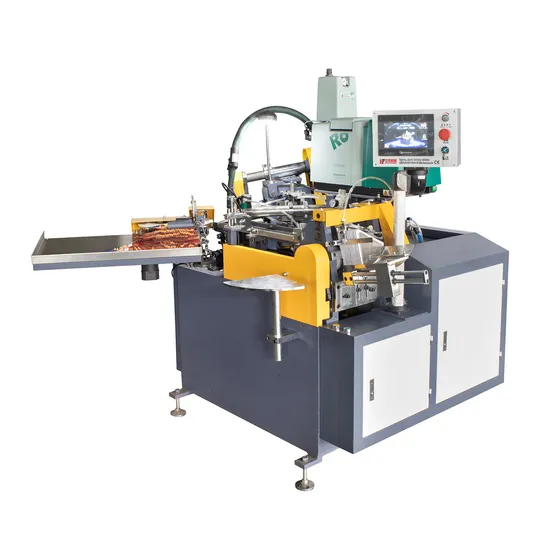

Toppro Paper Cone Machine for Ice Cream 190-230 PCS/Min

Toppro Paper Cone Machine for Ice Cream 190-230 PCS/Min

US$22,000.00-24,000.00 1 Set (MOQ)

Basic Info.

Model NO.
CPC-220
Cup Size(Ounce)
4-10oz
Speed
190-230PCS/Min
Required Paper
Wax Paper.Kraft Paper etc
Automation
Automatic
Logo Printing
Without Logo Printing
Certification
CE
Customized
Customized
Condition
New
After-sales Service
One Year
Cone Line
Min 100mm-Max 250mm
General Power
9kw
Angle Degree
17-23deg;
Net Weight
1000kgs
Dimension
1850*1750*1800
Process
Finishing Process Machine
Usage
Packing Paper Machine
Type
Cone Cup Forming Machine
Computerized
Yes
Transport Package
Wooden Case
Specification
1850*1750*1800mm
Trademark
LIFENG
Origin
Zhejiang, China
HS Code
8441309000
Production Capacity
200sets/Month

Product Description

A. CHARACTERISTIC for 2022 New Type High Speed Paper Cone Sleeve Making Machine cpc-220 automatic paper cone sleeve machine is made for ice cream and other similar paper cone sleeve,this machine can shape angles from 17degree to 28 degree,(through the way to change the mold).high speed from 190-230pcs/min,can use different paper material like art paper,aluminized paper,offset paper etc,major parts of this machine used famous international brand like schneide r,panasonic robatech etc.
B. MAIN TECHNICAL SPECIFICATION
Item CPC-220
Speed 190-230pcs/min
Paper Cup Size 4-10oz
Cone angle 17-23degree
Cone length 100-250mm
Raw material 80-170 g/m2, art paper/aluminized paper/ offset paper/ wax paper etc.
Electricity 220V50Hz1phase, 380V50Hz3phase or customize
Power 9kw
Net weight 1000Kgs
Dimension 1850*1750*1800mm
Main parts brand PLC: Mitubishi
Glue box: Robatech
VACUUM PUMP: Huitong
TRANSDUCER: Delta
SENSOR: Panasonic
ELECTRICAL PARTS: Schneide r +Panasonic
C. MACHINE ADVANTAGE for high speed paper cone machine
Special materials made of cone mold Switzerland Robatech boriginal nozzle
The conveying of paper is fast and stable Intergrated Discharge waste and the vacuum Hunan-machine interaction
Large scale touch screen interface
visual human-machine interaction
Main parts brand
PLC: Mitubishi
Glue box: Robatech
VACUUM PUMP: Huitong
TRANSDUCER: Delta
SENSOR: Panasonic
ELECTRICAL PARTS: Schneide r +Panasonic
D. Finished products
E. COMPANY OTHER REALATED MACHINE
we also have paper cup machine,paper die cutting machine,paper sleeve machine,paper bowl machine etc,can provide you full paper cup production line,if you are interested,pls feel free to contact me.

F. Packing details
Our machine will pe packed with strong woodencase, also will send you english manual,electric diagram,operation CD,can teach you how to operate the machine and
change mold.
G. AFTER SERVICE
1. Paper Cup forming Machinewarranty: 1 year
2. the guide booklet will be sent with machine to guide the installation
process works, adjust the whole machine, production,
3. we will adjust the machine well for one week before the delivery,
4. we can dispatch technologists to buyer's factory, guiding installation, ajustment for a period,
5. we supply the free training of buyer, the training won't stop until the buyer control the whole leson!
6. we supply the consumable spare parts for free for one year use.
H. FACTORY VIEWE
Ruian Lifeng Machinery Co., Ltd (old name: Ruian Sincere Machinery Co., Ltd. ) is a manufactory specialize in producing series of automatic machinery for paper contaciners like paper cup making machine, paper bowl forming machine, ice cream cone sleeve machine, die punching machine etc. Especially the water cone cup machine, we get the patent in China. And all of our products have past CE, SGS. In last 10years, we exported to all of the world and get good feedback from our customers.
We pursue "quality first, service paramountcy". Welcome the clients at home and abroad to negotiate and cooperate.
I. Questions & Answers for high speed paper cup machine Q1. Are you trade company or factory? We are factory, not trade company.
Q2. What certification do you have?
We have CE, BV and SGS certification.
Q3. What is your delivery time?
Our mahcine need 25 -30 days in normal,
if your order is urgent, we can descuss aout that.
Q4. What is the HS code?
Our machine HS code is 8441309000
Q6. When the machine have problems,how you can sove it?
Firslty,we have 1 year warranty,we can provide comsumable spare parts for free
secondly,all machine will be insatalled and test well in factory,we will test machine for one week,and make sure when you receive machine,can start prodcution at once,
thirdly,if when you receive machine,the machine can not run well,then you can send video and photo to us,we are 24 hours avaliable for you,and will teach you step by step,help you slove problem,
forthly,if the machine problem,you can not slove it by yourself,then we can dispatch the engineer to your factory,
Q7. What is the manual and instruction language?
The manual and instruction all will use english language,if you want use your country language,it also can be customized,and we also will send you a operation video,teach you how to change mold and operate machine.
Q8. Can we make different size in one machine?
High speed paper cup machine only can one machine one size,not adjust change mold
Q9,what is the meterial is avalisable for this machine?
The material is pe coated paper,normally all buy the printed and cutted paper cup fan from paper factory,i can introduce you some good price paper factory.
Q2. where is your factory and how to get there?
Our factory location is 7# yongding road, songjiadai industrial park, feiyun town, ruian city, zhejiang province. china
you can by plane from your country to wenzhou city airport, then we will pick you up by car.
If you are interested in our machines,please don't hesitate to contact me!
