Basic Info.
Material
Iron/Aluminium Alloy
Product Name
Needle Roller Flat Cages
Number of Row
Single Row/Double Row
Structure
Needle Pin+Slide Track
Cage Strip
Aluminium Alloy
Bearing Type
Track Needle Roller Bearing
Strip Material
Nylon/Steel/Aluminium Alloy
Precision Rating
P0 P6 P5 P4 P2
Diameter Tolerance
-+0.0005mm
Length Tolerance
-+0.01mm
Transport Package
Carbon Box
Specification
MV/HW/FT/FW
Origin
Jiangsu, China (Mainland)
Packaging & Delivery
Package Size
10.00cm * 5.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description

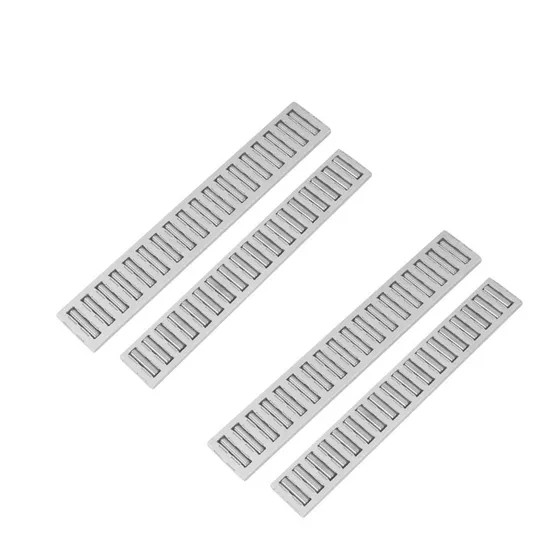

Product Description Steel Linear Rollers Bearing Track Detail For Neeble Bearing The Needle Flat Roller Cage is a limited linear motion guide consisting of high accuracy rollers and very precise cages with low cross sectional height. Since rollers are assembled in a cage with a small pitch distance, load ratings are large and rigidity is high. A single row model and a double row model with a 90° angle are standard and can be used to convert conventional plain guiding parts in machine tools into a rolling guide type, without a large-scale redesign of the bed. Since the high accuracy cage guides the rollers, the frictional resistance is very low without stick-slip, and stable linear motion is obtained.Cages made of synthetic resin are ideal for applications where low noise is required. The rollers are caged securely in a retainer, allowing for easy handling.
Type | Size(mm) |
MV | MV10 MV14 MV16 MV19 MV25 MV30 |
HW | HW10 HW15 HW16 HW20 HW25 HW30 |
2.Nylon Linear Rollers Bearing Track Detail For Neeble Bearing
Needle roller bearings are equipped with thin and long rollers, so the radial structure is compact, its inner diameter size
andload capacity are the same as other types of bearings, the outer diameter is the smallest, especially suitable for radial
installation size limited bearing results. Bearings without inner rings or needle roller and cage components can be selected
according to different use occasions. At this time, the journal surface and shell hole surface matching with bearings are directly
used as the inner and outer rolling surfaces of bearings. In order to ensure the load capacity and running performance are the
same as those of bearing with rings, the hardness, machining accuracy and surface quality of shaft or shell hole raceway surface
should be similar to the raceway of bearing rings.
