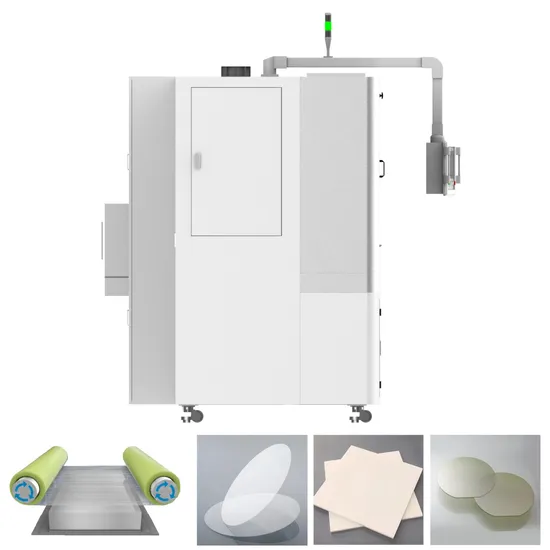

CA4040 Multi-wire Saw
CA4040 Multi-wire Saw is mainly used for batch opening square of super hard and brittle materials such as Sapphire, Special Ceramics, Silicon Nitride, etc. into straight sheets. The machine can achieve cutting of super hard and brittle materials through workpiece swing to reduce cutting area. Five rollers design enables the machine to cut products within range of 5-60mm thickness.
Product Features
>Double Workstation
The machine adopts double-station design and is able to cut two plates materials at the same time.
>Easy Operation
Roller cutting system, workbench, tension system, take-up and pay-off and wire winding system are set in a plane for easy operation.
>Swing Cutting
The cutting force is stronger with the worktable swing design. Double worktable has an independent servo control system and can run independently.
>Flexible Wire Winding Mode
The rollers quantity can be flexibly changed between 3 and 5 to achieve cutting for products in different sizes.
>Stable Running
Five-roller direct drive structure leads to stable operation of the equipment.
>Wire Break Memory System
Cut Samples
Product Parameters
Detail | Parameter |
Model | CA4040 |
Maximum work size | 400x250x400mm |
Slice thickness | 5-60mm(wire winding number ≤50) |
Workbench qty | 2 |
Roller out diameter *Workable width | (φ180±10mm)*260mm*5 |
Wire diameter | φ0.20mm-φ0.37mm |
Wire Spool Storage | 40km(φ0.25mm) |
Maximum running speed | 1000m/min |
Travel of workbench lifting | 422mm |
Workbench swing | ±7.5° |
Cutting method | Vertically upward movement |
Cutting feed speed | 0.1-99.9mm/min |
Cutting fluid | Water--based cutting fluid or cutting Oil |
Fluid storage | 800L |
Fluid flow rate | 200L/min |
Power Supply | Three-phase 380V 50Hz |
Rated power | 42kw |
Air supply | ≥ 0.4MPa. |
SizeL*W*H | 3000mm*2200mm*2820mm |
Weight | 5000Kg |
