Smart Honeycomb Converting Systems for Eco-Friendly Packaging Lines
| US$530,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HX2600-1100G
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Recycled Material, Paper
Paper Thickness
Normal Specification Paper
Material
Starch/PVA
Heating
Steam
Opearting Person
3
Production Time
5month
Transport Package
5 40hq
Specification
35300mm *6000mm *3800mm
Trademark
meixun
Origin
China
Production Capacity
10 Sets/Year
Product Description
Product Description| parameters | Specifications | |
| 1 | Effective width of core paper | 1300mm-2600mm |
| 2 | roll diameter) | φ1400mm |
| 3 | Core paper weight | 80g/M²-150g/M²(Medium to high strength corrugated paper) |
| 4 | Adhesive | Starch glue,PVA |

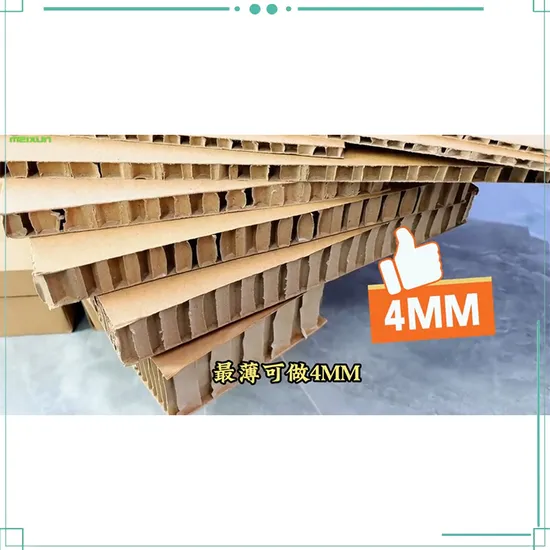

| 5 | Finished paper core thickness | 5-60mm |
| 6 | Honeycomb paper core cross-cut production speed | 1100cuts/min(Thickness6mm,paper core weight90-120g) |
| 7 | Honeycomb hole side length | To be determined |
| 8 | Honeycomb flatness | ±0.1mm |
| 9 | Heating method | Steam heating |
| 10 | Equipment installed power | Approximately50KW |
| 11 | normal production power consumption | 50KW*50%-60% |
| 12 | Total weight of equipment | Approximately80T |
| 13 | Equipment dimensions | 35300mm length×5600mm width×3800mm high |
| 14 | Equipment operation direction | To be determined |
Main Technical Parameters of the Equipment: Discover the robust and versatile capabilities of our Advanced Honeycomb Converting Technology. Engineered for precision, this equipment boasts cutting-edge technical specifications designed to enhance productivity, minimize waste, and ensure seamless integration into any packaging line. Experience superior performance and adaptability, setting new benchmarks in eco-friendly manufacturing.
| 2600 paper core machine project configuration table | |||
| part name | project | Remark | |
| 1 | Core paper unwinding unit | Hydraulic Shaftless Paper Holder (with simple paper changing Components) | |
| 2 | aisle on the platform | Rack Transition Parts | |
| 3 | Core paper gluing unit | Core paper gluing parts ( can be equipped with double- toothed rollers) | |
| 4 | Core paper composite drying unit | Single group ( can be equipped with double pressure rollers) composite traction parts , equipped with 2 groups of composite drying | |
| 5 | Cross cutting machine unit | High-speed cross-cutting machine parts | |
| 6 | Paper core automatic collection unit | Finished paper core automatic collection part | |
| 7 | heating method | steam heating | |
| 8 | Main control component brand | Mitsubishi, Inovance, Lenze | |
