Metal Slitting and Cut to Length Machine Siemens Brand Motor
Basic Info.
Model NO.
zh
Forging Forming Method
Mold Forging
Power Source
Electric
Feature
Automation
Certification
CCC, ISO9001, CE
Warranty
24 Months
Customized
Customized
Advantage
Easy to Maintenance
Condition
New
Width of The Panel
1300mm
Thickness of Coil
1-2mm
The Diameter of The Rollers
100mm with Hard Chroming Treatment ,CNC Processing
Thickness of The Middle Panel
40mm
Control System
PLC Control
Roller Shaft
Upper 5 Rows Bottom 6 Rows
Main Machine Structure
350 H Steel with 16mm Thickness Plate CNC Milling
Line Speed
0-30m/Min
Main Power
7.5kw Servo Motor
Cutter
Cut to Length Motor Control
Accurate
1mm
Material of Blade
Cr12MOV with Hard Heat Treatment 55-62 Degree
Bearing
High Speed Motor Bearing
Transmit
Gear
Transport Package
Water Proof Plastic Film Cover
Specification
1300mm *2mm
Trademark
ZHONGHENG
Origin
China
HS Code
8462399000
Production Capacity
50 Sets /Months
Packaging & Delivery
Package Size
850.00cm * 150.00cm * 130.00cm
Package Gross Weight
7500.000kg
Product Description
CTL-3x1500 cut to length line Automatic Heavy Duty Cut To Length Machine Line| 1. | Power requirement | Type | 380v/3ph/50hz | |
| | | Main Motor power | 4kw | |
| | | Cutter power | 3kw | |
| 2. | Forming speed(m/min) | 8-15 | Not include the time of cutting | |
| 3. | Forming stations | upper4 buttom 5 | Depend on actual design | |
| 4. | Thickness of structure | 16mm | | |
| 5. | Forming shaft diameter(mm) | 110 | | |
| 6. | Gear | | | |
| 7. | Sleeve | galvanized pipe with color coating | | |
| 8. | Type of cutting | Roll formed and length-set cutting | | |
| 9. | Control system | PLC Panasonic Inverter | | |
| 10. | Install dimension(depend on the final design) | 2.2m×1.35m×1.2m | Without panel length | |
| 11. | Total weight (Approx) | 2.5T | Depend on final design | |
| 12. | Screen | Text screen /touch screen | ||
Usage :Accessories of the roll forming machine. The usgae is leveling and cutting .

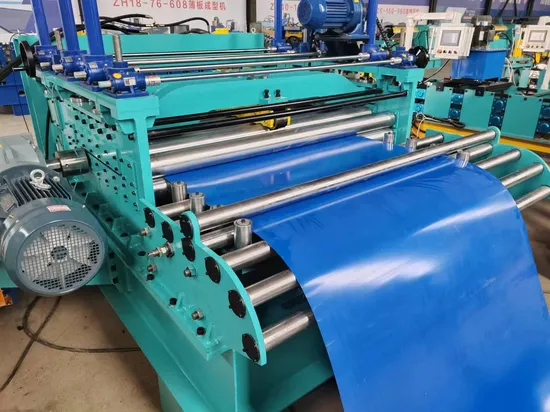

Machine picture
With the slitting funtion ,adjustable blade
Motor control lifting devices
Package and shipment
This machine can load with the hydraulic decoiler and other machines together in one 20' container.
