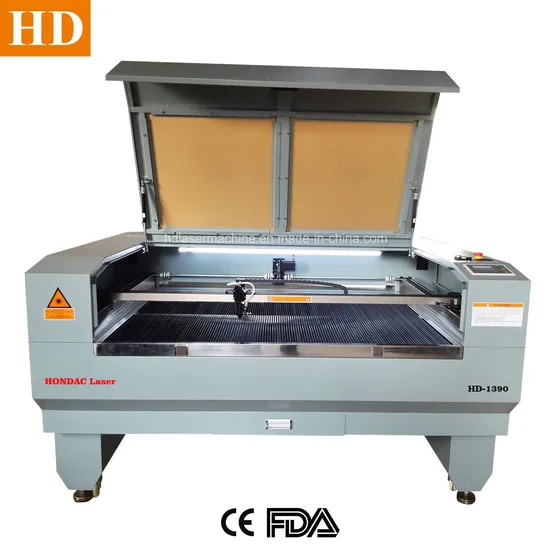

Easy Operation Laser Cutter for Signage Advertising 1390

Product Description

Machine Feature:
1. The machine body applied with most solid design which can ensure no deformation long time operation and transportation.
2. The machine fixed with LEADSHINE brand stepper motor and driver, linear guide and strong belt running system.
3. Adpots with adanced DSP control technology, fixed with high quality electronic parts, ensure high cutting engraving speed,
high accuracy and high stability, long time usage life.
4. Applied with imported lens and reflector mirror, ensure high laser power efficiency.
5. The machine connect with computer by USB/ INTERNET wire or U disk directly.
6. With water cooling system, exhaust fan and water pump, etc.
7. It have cutting and engraving function, it have half-cut function.

Laser cutting machine specification:

Laser source	Wave Length(µm)	10.6
	Optional Power ( w )	60w, 80w, 100w, 130w, 150w
	Cooling	Water Cooling
Working Para.	Working Area ( mm )	600X400	900X600	1000X800	1300X900	1400x1000	1600X1000	1800X1000
	Min. Line width ( mm )	0.15 ~ 0.3
	Working speed ( mm/M )	0 ~ 36
	Repeat position precision (mm)	±0.05
	Compatible format	PLT, DXF, AI, DST, DSB, JPG, BMP, GIF
Power		AC220V ± 10%, 50/60HZ
Dimension (cm )		120X100X115	150X120X115	160X140X115	190X150X115	200x160x115	220X160X115	240X160X115
Net Weight/ Gross weight ( kgs )		180 / 250	270 / 350	300 / 400	350 / 450	400/500	450 / 550	500 / 600
Working environment		0 ~ 40ºC, clean and no-dust room, without water
Others	total power(w)	<1500
	protection class	IP54
	Laser safety class	4 class

MACHINE DETAILS
Applicable industry:
Advertising, signage, gifts, garments, shoes, bags, curtain, model, home furnishing, decoration, label, electronical etc industry,
Suitable materials:
acrylics, wood, paper, bamboo, fabric, cloth, leather, shoe bottom, woollen, plastic, ABS, resin, ceramic, and other nonmetal materials.
MAIN MACHINE ACCESSORY

FACTORY INDRODUCTION:
Professional laser machine factory, have more than 10years experience in production of laser equipment.
Applied with high quatiy spare parts, with strict requirement of installation, tuning and testing, that make sure every machine set stabl, long time usage life.
We supply full series of laser cutting machine, CO2 marking machine, fiber marking machine etc.
Aftersales service
1. Whole set machine with 1 year warranty, except consumable parts as laser tube, lens etc.
Lifelong maintainance and repairing support service.
2. Profesional technical team support by email or online timely, free software update.
3. If need, we can send technician to cuostomer local place to supply service and support.
