US$8,400.00-11,500.00
|
1 set
(MOQ)
|
Basic Info.
Type
Surface Grinding Machine
Processing Object
Planar Mill
Controlling Mode
Artificial
Maximum Left-Right Movement
260
Mechanical Height
1775 mm
Occupied Area
1800X1400 mm
Transport Package
Customizable
Specification
Customizable
Product Description
Product Description
Experience unparalleled precision and craftsmanship with Dongguan TranStar Machinery Co., Ltd.'s High Precision 2 Axis Handwheel Surface Grinder. This state-of-the-art machine is engineered to deliver exceptional surface finish and accuracy, making it an indispensable tool for your production line.

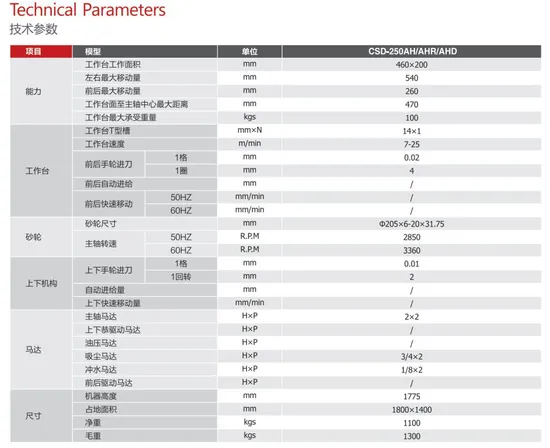

Product Parameters
Delve into the superior specifications of our High Precision 2 Axis Handwheel Surface Grinder. Designed by the experts at Dongguan TranStar Machinery Co., Ltd., this machine ensures consistency and meticulous attention to detail in every use, enabling peak performance and reliability.
Mountings | Specifications | Unit | CSD-250AH/ AHR/ AHD |
Ability | Table Dimensions | mm | 460×200 |
Maximum forward and backward movement | mm | 540 |
Maximum left-right movement | mm | 260 |
Distance between spindle center and work surface | mm | 470 |
Maximum bearing weight of working table | kgs | 100 |
Work Table | Table T-slots | mm×N | 14×1 |
Table speed | m/min | 7-25 |
Front and rear handwheel feed | a check | mm | 0.02 |
a round | mm | 4 |
Auto-supplying from front to back | mm | / |
High speed moving from frong toback | 50HZ | m/min | / |
60HZ | m/min | / |
Grinding Wheel | Grinding Wheel Size | mm | Φ205×6-20×31.75 |
Speed of mainshaft | 50HZ | R.P.M | 2850 |
60HZ | R.P.M | 3360 |
Upper and lower mechanism | Up& down handwheel feed | a check | mm | 0.01 |
a turing round | mm | 2 |
Auto-supplying volumn | mm | / |
High-speed mouing dimension from up to down | mm/min | / |
Motor | Spindle motor | H×P | 2×2 |
Drive motor up and down | H×P | / |
Drive motor up and down | H×P | / |
Vacuum motor | H×P | 3/4×2 |
Dust catching motor | H×P | 1/8×2 |
Back and front driving motor | H×P | / |
Machine Size | Mechanical height | mm | 1775 |
Occupied area | mm | 1800×1400 |
Net weight | kgs | 1100 |
Gross Weight | kgs | 1300 |
Products Details: Discover the intricate features and benefits of the High Precision 2 Axis Handwheel Surface Grinder from Dongguan TranStar Machinery Co., Ltd. With its robust design and cutting-edge technology, it promises to enhance your manufacturing processes with unmatched efficiency and precision.
