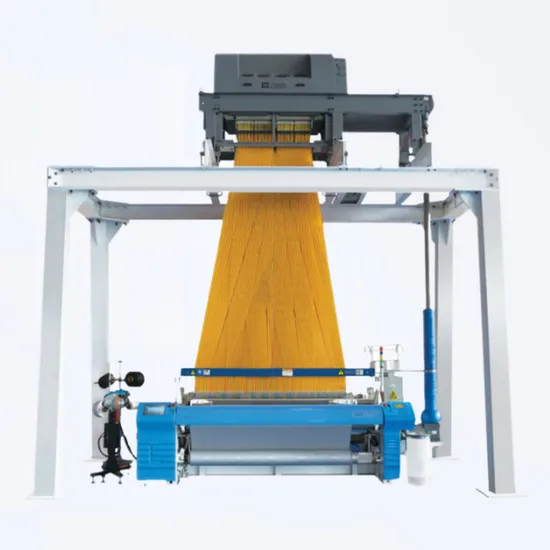

Lenado 2020e Customize Explosive New Product Ideas Good Quality Textile Loom
| US$10,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Lenado 2020e
Computerized
Computerized
Precision
High Precision
Certification
ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
After-sales Service
One Year From The Date of Shipment
Width
190,210,230,260,280,340,360(Cm)
Beating
Crank Beating
Take up Max Take up Dia.
φ600mm
Take up Side Brace
Overhead
Transport Package
Export Packing
Specification
550cm*200cm*250cm
Trademark
Lenado
Origin
China
HS Code
8446309000
Production Capacity
1000pieces/Year
Product Description
| Width | 190,210,230,260,280,340,360(cm) |
| useful reed width | Same as nominal width Max reduction 60cm(190-260cm) |
| Same as nominal width Max reduction 80cm(280-360cm) | |
| Speed | 1200 rounds per minute |
| Weft selection | 2c/4c/6c/8c |
| Drive | Superstarting moter |
| Direct drive stop by electromagnet brake | |
| Weft insertion | Main and sub-nozzles combined system |
| Auxiliary main nozzle | |
| Profiled reed | |
| Shedding | Positive cam: shaft up to 10 |
| Dobby: shaft up to 20 | |
| electronic jacquard φ800mm | |
| Let-off Flange Dia | Servo electronic let-off |
| Positive easing | |
| Servo electronic take-up | |
| Take up Max take up Dia. | φ600mm |
| Take up Pick density | 9.8-118 picks/cm |
| Take up Length count | board dispiay. fixed meassure stop |
| Take up Side brace | overhead |
| Beating | Crank beating |
| 4 links(Read space 190-280cm) | |
| 6 links(Read space 280-360cm) | |
| intermediate rocking supporter | |
| Filling Supply Stand | Floor-mounted for 4packages(2c), for8 (4c)for10(6c) |
| Cutter | Mechanical cutter |
| Lubrication | Oil bath system for main drive parts, centralized lubrication(manual grease) |
| Auto stop Motion Weft broken | Reflective weft feeler |
| Auto stop Motion Warp broke | Six rows Electric fleeling system |
| Others | Stop for selvage and catch cord yarn |
| Stop cause indication | Message on board, 4-colors lamp for indicating cause |
| Middle scissors | Mechanical type(Tisser double width) |
