5ton Double Helix Palm Red Oil Processing Plant Palm Oil Machine Price

5ton Double Helix Palm Red Oil Processing Plant Palm Oil Machine Price

US$38,500.00 1 Set (MOQ)

Basic Info.

Model NO.
PLL-5T/H
Structure
Horizontal
Press Series
First
Voltage
380V
Processing Capacity
1t/D
Processed Objects
Palm Fruit Skewers
Function
Palm Oil Production
Oil Yield
>35%
Transport Package
40 Foot Container
Trademark
sanbang
Origin
Henan
HS Code
8479200000
Production Capacity
30 Units Per Year

Packaging & Delivery

Package Size
3000.00cm * 600.00cm * 900.00cm
Package Gross Weight
2000.000kg

Product Description

5ton Double Helix palm red oil processing plant palm oil machine price
Product Description
Material: Fresh palm fruit bunch
Palm Oil Output rate: 35-45% from palm fruit bunch
Capacity :0.5-5T/per H for palm fruit bunch
The main process :
Raw material reception section --Sterilization station--Threshing section --Dighesting&pressing station --Oil clarification station--Kernel recovery station
reception station:
The palm oil processing plant starts after the harvesting of the palm fruit bunches where they are taken to the palm oil mill for processing. During the harvesting process the fruits should be handled with care to prevent bruising them as the bruise reduces the quality of oil extracted.

Sterilization Station:
Sterilization process follows where a lot of heat is used to cook the fruit. In this station of palm oil processing, enzymatic reactions are also stopped, arresting hydrolysis,auto-oxidation and the outer cover of the fruit (exocarp) is also weakened allowing easier oil extraction from the fruit. This process can be done by either roasting/smoking which is done after threshing process or by steaming/boiling which should be done before threshing process.
Threshing Station:
The fruit bunches then undergo threshing which separates the fruitlets from the bunch in a rotating drum. It can be done manually or a mechanical by use of palm oil processing machinery - thresher / threshing machine. The loose fruits are then conveyed to the another palm oil processing machine - digester, and the empty fruit bunches are separated and returned to the plantation or used as fuel in the boiler.
Digesting Station:
The fruits are then digested in the digester. This process involves the crushing of the fruits and warming the pulp before oil extraction is done. Warming is important in order to maximize oil extraction.
Adopt Twin Screw Palm Fruit Oil Press Machine:
Oil is then clarified, in this process impurities screening is done whereby large solids of fiber and dirt are removed from the raw oil .Water is then added to the raw oil in order to improve the separation process. After sieving process the raw crude oil is obtained but it still contains fine solids and water. Water is removed by introduction of a steam in the coils (increasing the temperature in the coils). The fine solids that are in the oil are removed finally as they sediment hence separating oil from the sludge to obtain about 163 kg of oil per one tone of the palm fruits processed.
Kernel recovery station : The pressed cake (fiber&nut) is transported to the fiber separation system for fiber&nut separating ,the separated nut is sent to nut silo for temporary storage .
The palm kernel nut is crushed by ripple mill ,then get the mixture of palm kernel and shell .
Product Parameters
Model PALM-1 PALM-2 PALM-3 PALM-5 PALM-15
Handling capacity 350-500KG/H 800-1000kg/H 2000-3000kg/H 5000kg/H 10T/H
Matching power 8HP 5.5-7.5kw three phase 11-15kw three phase 18.5kw three phase 30kw three phase
Hydraulic station / / 4kw 4kw 4kw
Squeezing chamber size 160*500mm 200*900mm 300*900mm 400*1700mm 500*1800mm
Spiral length 560mm 900mm 900mm 1300mm 180mm
Screw speed 25-35r/min 35-40r/min 35-40r/min 30-35r/min 35-40r/min
Gross/Net Weight 260/230kg 800/900kg 1200/1300kg 2100/2200kg 3800/4000kg
Package size 1400*600*820mm 2450*900*1150mm 2700*1200*1000mm 3470*1560*1500mm 5600*1600*1000mm

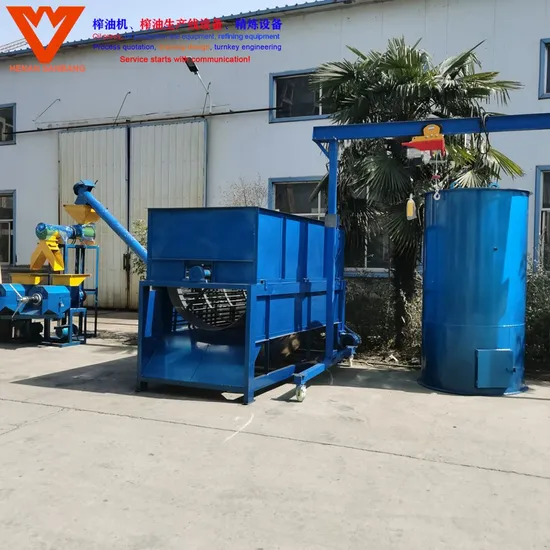

Detailed Photos

Installation Instructions
Small palm oil production line, no need for boilers (directly burning biomass), no need for installation; Complete all assembly work before leaving the factory, and assemble the equipment according to the drawings upon arrival before use.
A large-scale palm oil extraction production line requires a steam boiler (a biomass burning boiler), and our technical personnel will be on-site for installation, debugging, and training.
