High-Quality Double Shaft Plastic Shredder for Plastic Drums and Tanks for Pipes Bottles

High-Quality Double Shaft Plastic Shredder for Plastic Drums and Tanks for Pipes Bottles

US$5,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YL-66
Material Processed
Plastic Bottle
Plastic Type
PE
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
QS, ISO9001:2008, CE
Model
Yld Series
Control
Siemens PLC
Certificate
CE
Size
According to Request
Blade
Disk Type
Blade Material
D2
Shipment Package
Wooden Pallet
Material
Plastic Pipe
Usage
Pet Bottles
Ues
Drum
Delivery Time
30 Days
Machine Installation
Available
Capacity
300-2000
Application
Plastic Bottle, Plastic Drums, Papers
Shaft
Two Shafts
Transport Package
Wooden Pallet
Trademark
YILI
Origin
Zhangjiagang, China
HS Code
84778000
Production Capacity
30 Sets/Per Year

Packaging & Delivery

Package Size
120.00cm * 150.00cm * 110.00cm
Package Gross Weight
1000.000kg

Product Description


Raw Material & Final Product:
Applicable Material
Plastic(Plastic drums, Barrels, Bottles, Tanks, Baskets); Plastic sheets; Electronic waste; Metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes); Aluminum cans; Wood(wooden pallets or fruit boxes); Waste tire, rubber; Waste household appliances; Paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material); Introduction

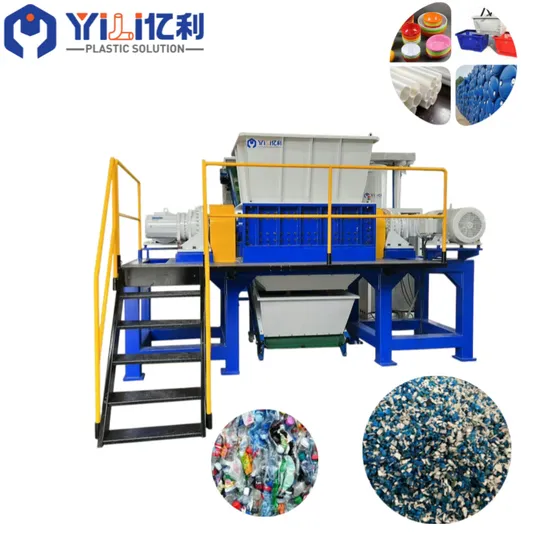

YILI Machinery YLD series double Shredders are used for pre-crushing of materials like the plastic barrel, plastic drum, plastic bottle, plastic tanks, plastic baskets, etc., which are hard to crush by a common crusher. The material after Pre-crushing, it will go to crusher to make fine crushing , which can increase the capacity of crusher and the lifetime of the crusher blades. Our Shredder is equipped with SIEMENS PLC intelligent controlling system, it has the features of automatic stop, reserve direction run, and alarming functions in case of the possible material block, metal escape, or overload.
The YLD series plastic shredders and YL series strong crusher machine can compose a shredding system, they can meet any customer's plastic size reduction requirement from 4mm to 50mm. If necessary, using our ZL series plastic pelletizing line, customers also can make the recycled grinded plastic chips into plastic granules, which can be used in much more field. Here we can supply you with turn-key solutions plastic recycling solutions from waste dirty plastic to clean high quality recycled plastic granules. Please contact us directly to give more information and suggestions for your plastic recycling.
Technical Specification

Model Shredding Motor Power(kw) Shredding Chamber size(mm)
YLD-300 7.5 510*300
YLD-400 7.5 510*400
YLD-600 7.5+7.5 510*600
YLD-800 18.5+18.5 600*800
YLD-1000 22+22 800*1000
YLD-1200 30+30 1000*1200
YLD-1400 55+55 1400*1200
YLD-1600 55+55 1600*1200
YLD-1800 75+75 1800*1400
YLD-2000 90+90 2000*1400

Tech Features & Advantages
Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers; Dual shafted, slow-speed, high-torque waste shredder with hardened steel blades; The two cutting rotors powerfully grab the feed material, and no matter the feed material is a large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces; Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length, and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using a forklift truck to feed. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high-quality steel, suitable for shredding tough materials and for extra long life; Depending on the requirement, these discs (blades) are available in a wide range of quantities, qualities, and shapes with the new double-shaft shredder; Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume; Blades removal and replacement can be carried out safely and simply. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost-Effective Precision, High Radial Loads. The strong secondary crusher will be installed after the shredder to make the final products reaching any size requested by customers Main Machines For the line
