High Speed Spray Head for Fire Fighting Equipment

High Speed Spray Head for Fire Fighting Equipment

US$0.60-0.80 500 Pieces (MOQ)

Basic Info.

Model NO.
ZSTMB
Alarm Valve Type
Deluge Valve
Automatically Opened and Closed Repeatedly
Can Automatically Opened and Closed
Open Fire Sprinkler System Type
Deluge System
Wet Alarm Valve Structure
Seat Type
Alarm Valve Diameter
150mm
Nozzle Flow Coefficient
80
Deluge Valve Type
Diaphragm Type
Nominal Diameter
Dn15, Dn20
Flow Range
15~150L/Min
Atomize Aangle
120, 150, 180degree
Working Pressure
0.35MPa
Type
Single Outlet, Double Outlets, Cornice Outlet
Transport Package
Carton+Crate
Trademark
GAN
Origin
Shenzhen, China

Product Description

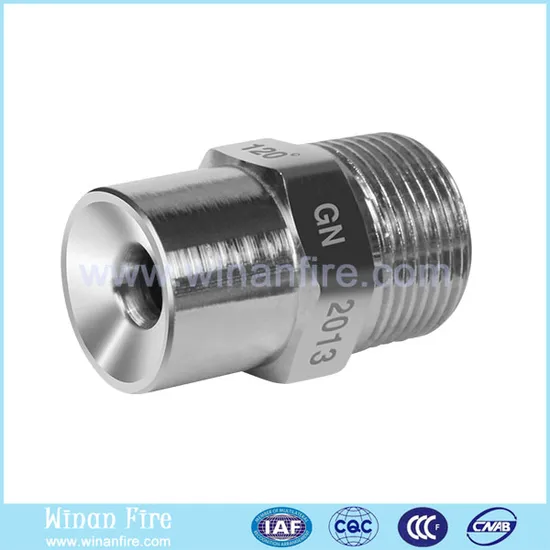

High Speed Spray Head Sprinkler Head
It is the high speed spray head that constitutes the sprinkler system along with water supply pipeline, control valves and announciator to put out fire on electrical equipment and flammable liquid. It is widely used in large transformer, oil tank, shopping mall and warehouse.
Working Principle:
The ZSTD series high speed water mist nozzle consists of helical core and nozzle frame. It is the significant unit in the sprinkler system. It will explode water into vaporific droplets by the influence of pressurized water and eject at a certain velocity.
Technical parameters:
Connection Size Working Pressure
(MPa)
Flow Range
(L/min)
Atomizing Angle K Factor
DN15 0.35 15~70 60°
90°
120°
8~40
DN20 70~150 40~80
DN25 150~300 150~300

Notes: we make available customized design for our clients
Package:
Exhibition:
The project we finished :
FAQ 1. What is your product range?
We have manufactured the foam system, sprinkler system, fire monitors, fire hydrant, water mist system and valves since 1995.
2. What is your usual payment term?
We accept T/T, L/C and Western Union.
3. How long is the delivery time?
Shipped in 15 days after payment.
4. Do you have technical support?
Yes, we have a professional engineering team.
5. Do you have warranty?
Yes, all products have one year warranty.
6. Can you accept OEM?
Yes, we can do as our customer's requirement.
