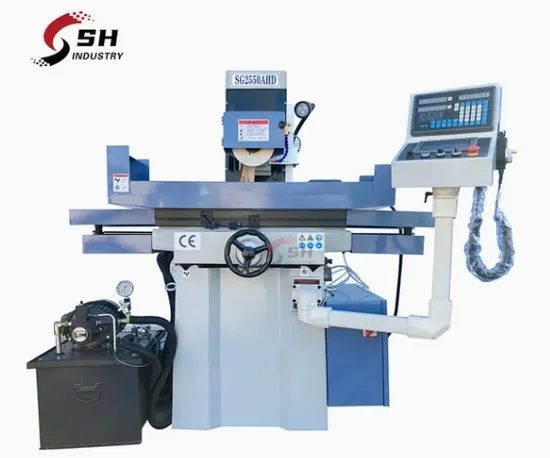

3 Axis Full Automatic Hydraulic Metal Surface Grinding Machine Sg2550ahd Surface Grinding Machines for Sale
| US$11,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SG2550AHD
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Product Name
3 Axis Full Automatic Hydraulic Metal Surface Grin
Max.Grinding Workpiece SizeTmm
520*250*240
Table Longitudinal TravelTmm
520
Table Cross TravelTmm
250
Max. Distance From Spindle Center to Tab
450
Max.Table LoadTkg
200
Transport Package
Plywoiod Case
Trademark
Shenghuan
Origin
China
HS Code
8460199000
Production Capacity
200
Packaging & Delivery
Package Size
197.00cm * 135.00cm * 198.00cm
Package Gross Weight
1100.000kg
Product Description
3 Axis Full Automatic Hydraulic Metal Surface Grinding Machine SG2550AHD Surface Grinding Machines for SaleProduct Description
Main technical specifications:
| Specifications | Unit | SG2550AHD |
| Max.grinding workpiece size | mm | 520x250x240 |
| Table longitudinal travel | mm | 520 |
| Table cross travel | mm | 250 |
| Max. Distance from spindle center to table | mm | 450 |
| Workbench slide | One flat one V | |
| Max.table load | kg | 200 |
| Table size | mm | 520x250 |
| Table T slot (slot number x slot width) | 14x1 | |
| Speed of table longitudinal movement | M/min | 18 |
| Feed amount of front and rear hand wheels | MM | 0.02/grid, 4/turn |
| Upper and lower MPG feed | mm | 0.001/0.01/0.1/grid 0.1/1/10/turn |
| Grinding wheel size(ODxWxID) | mm | 200x20x31.75 |
| Spindle speed(50HZ) | rpm | 2800 |
| Spindle motor power | KW | 1.5 |
| Total motor power | KW | 4 |
| The process surface of the base level of the parallel degree | mm | 300:0.005 |
| Surface roughness | μm | Ra0.32 |
| Grinding head vertical feed motor | kw | 0.75 |
| Table front-rear feed servo motor | kw | 0.06 |
| Fuel tank capacity | L | 60 |
| Cooling pump motor | KW | 0.04 |
| N.W./G.W. | kg | 1100/1200 |
| Packing size | mm | 1970*1350*1980 |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
