Top Grade Pressure Solar Geyser with Ø 137mm 6-Tube Tank-in-Tube Design

Top Grade Pressure Solar Geyser with Ø 137mm 6-Tube Tank-in-Tube Design

US$497.00-542.00 2 Sets (MOQ)

Basic Info.

Model NO.
LP-6-137*1860
Max. Capacity
>200L
Structure
Compact Type
Pressure
Pressurized
Interior Material
Borosilicate Glass and SUS304 Stainless Steel
Collector Components
Glass Vacuum Tube
Certification
ISO9001, CCC
Heater System
Simplest
Technology
Most Advanced Tank-in-Tube Design
Efficiency
Highest Hot Water Output Efficiency
Heating Auxiliary
Gas-Fuel or Electric Water Heater as Auxiliary
Easiest Installation
Installed Anywhere at/on/in Buildings
After-Service
Simplest Maintenance and Service
Transport Package
Carton / Wooden Packing
Specification
Ø 137mm*1860mm, 6 tubes
Trademark
LOPU
Origin
China
HS Code
8419901000
Production Capacity
55000 Sets / Year

Product Description


1. Why is it called "Tankless Solar Water Heater"?
Inside each tube(Ø137mm), there is a high-temperature-resistant and corrosion-resistant stainless-steel cylinder made of food-grade 304/316 material which contains water as water tank, so it is called Tankless.
The system can contain many units and each unit has 4-8 pieces of vacuum tubes, with each tube capacity of 16 liters of water.
2. What is the greatest advantage?
Highest hot water output is the Greatest Advantage
The stainless-steel inner tanks of every glass vacuum tube, as water tanks, are connected in series. By adopting unique and advanced technology, the hot water flows S-shaped in each water tank, and there will be least mixing between hot and cold water, thus the hot water outlet rate is the highest in the market.
3. How about the insulation of thiskind of water heater?
Each tube is equivalent to a thermos bottle, which has good insulation performance, and there is air between the steel cylinder and the glass tubes, which also provides the added thermal insulation. and the tube openings are also insulated by good materials, ensuring optimal heat retention.
Based on our experiments conducted on the roof of an eight-story building, with daytime temperatures reaching 7°C and night temperatures dropping to -3°C or -5°C, we observed that when 15°C water was injected at 9 AM, the water temperature ranged from 55°C to 69°C at 17:00 PM. The following morning at 8 AM, the water temperature ranged from 42°C to 47°C, and by 17:00 PM, the temperature of the hot water reached 85°C-95°C.
4. Can it be used in Cold Area?
It has Automatic Anti-freeze function
when the temperature falls below 5 °C, the system will automatically activate the anti-freeze electric heating feature.
5. How does it solve Limescale problem?
Pre-filter as a standard feature gives an effective limescale prevention solution to avoid any potential worry. In case there is limescale buildup inside the cylinder, we have limescale removal solutions available as well.
6. How is it installed and is it easy to maintenance?
The heater system is pressurized, which is connected to the tap-water supply system and on the other side it is connected to the shower head in the bathroom, so the pipeline system is relatively simple, and the installation and maintenance are also simple and convenient accordingly.

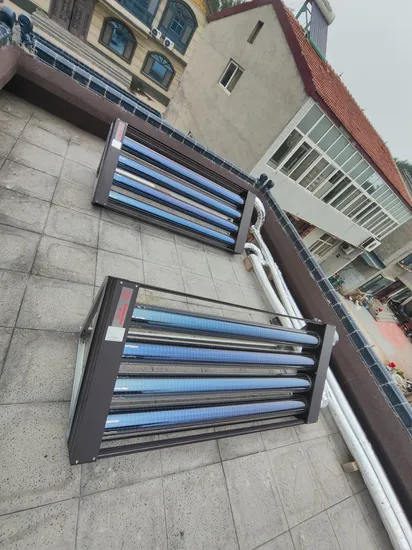

It can be installed anywhere for buildings, such as on the ground, the roof, the balcony, the terrace etc., whether high-rise building, multi-story building, bungalow or villa. Vertical, horizontal or inclined installation are available.
7. Can it add "gas water heater" or "electric water heater"?
Yes, gas or electric water heater can add to the system as auxiliary components to be used for weak or lack of sunlight.
when the water temperature in the steel cylinders (water tanks) is higher than the set temperature of the gas water heater, the gas/electric heater remains idle, allowing directly use the hot water from solaer heater,but if the water is cooler than the set temperature, the gas heater automatically start to heat water to meet your desired bathing temperature.
