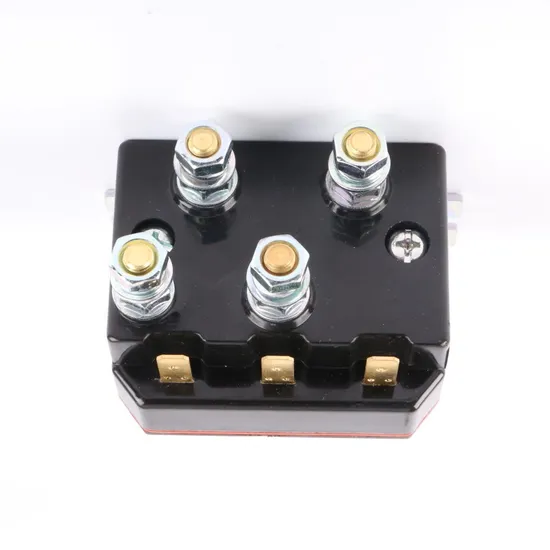

DC66p DC Contactor Continuous 50A Intermittent 250A 12VDC 24VDC 48VDC 100VDC Albright Equivalent Winch Solenoid Relay 12V 24V DC Motor Reversing Solenoid
| US$9.60-11.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
DC66P
Phase
1
Main Circuit Rating Voltage
80VDC or Less
Main Circuit Rating Current
Continuous 50A Intermittent 200A
Type
Dc Contactors
Coil Voltage
12VDC, 24VDC, 48VDC, 100VDC
Brand
Newtrend or OEM
Application
Winch, Tarp Motor, etc
Packing
25PCS/CTN, 38X29X18cm, 13.5kg
HS Code
85364110
Production Capacity
10000PCS Per Day
Packaging & Delivery
Package Size
50.00cm * 50.00cm * 50.00cm
Package Gross Weight
0.500kg
Product Description
DC66P DC Contactor Continuous 50A Intermittent 250A 12VDC 24VDC 48VDC 100VDC Albright Equivalent Winch Solenoid Relay 12V 24V DC Motor Reversing SolenoidW50-T-P-DE (DC66P), W100-T-P-DE (DC88P) DC Contactors has been designed for direct current DC loads, particularly motors used on electric winches and electric vehicles.
- Motor Reversing DC Contactor
- Coil Voltage: 12Vdc or 24Vdc
- Paired Single Pole Double Throw (Double Pole, Changeover Contacts)
- Ideal for Marine Applications, such as, Bow Thrusters, Windless and Winches.
| Model | W50-T-P-DE (DC66P) | W100-T-P-DE (DC88P) |
| Photo | ||
| Coil Voltage | 12VDC, 24VDC, 48VDC, 72VDC etc | |
| Rated Voltage of Contact Circuit | 80VDC and below | |
| Rated Current | Continuous 50A, Intermittent 200A | Continuous 100A, Intermittent 400A |
| Dielectric Voltage Strength | 50Hz 1000V AC 1min | |
| Volt Drop of Main Contact | < 100mV | |
| Mechanical life | 100 thousand times | |
| Electric life | Continous 20 thousand times, Intermittent 2 thousand times | |
| Contact Form | Double Pole, Changeover Contacts (Paired Single Pole Double Throw) | |
| Coil Power | 25-27W | 29-31W |
| Typical Pull-In Time (N/O Contacts to Close) | <30ms | |
| Typical Drop-Out Time (N/O Contacts to Open) | <50ms | |
| Pull-In Voltage (Coil at 20ºC) | <75%Us | |
| Drop-Out Voltage (Coil at 20ºC) | 5% - 40% | |
| Main stud terminals | M8 | |
| Feature | Waterproof, Heavy load for various Winches, Tarp motors, etc | |
| Wiring Diagram | ||
| Installation Diagram | ||
