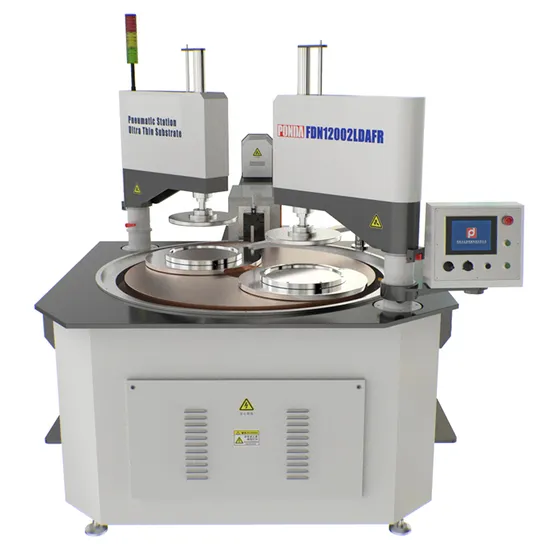

High-Precision Hardware Accessories and Small Workpiece Surface Lapping Machine

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, SiC wafer, ceramics, glass, industrial sapphire, plastics, and any other composites.
Products Show
How it works:
The grinding and polishing equipment is precision grinding and polishing equipment, the grinding and polishing products are placed on the grinding disc, the grinding disc rotates against the clock, the grinding disc drives the workpiece to rotate, the workpiece is pressed by the weight block, and the workpiece and the grinding disc are relative running friction to achieve the purpose of grinding and polishing.
The dressing mechanism of grinding disc adopts oil pressure suspended guide rail, which moves backwards and forwards to realize the repairing action when repairing disc. The repairing cutter adopts diamond material, which can obtain the ideal flat flatness and roughness effect.
This grinding machine is suitable for grinding and polishing of large workpieces.
APPLICATION

Single Plate Lapping & Polishing	Metal And Alloy Ceramic Oxide Carbide Glass Plastic Nature Stone	Sealing	valve and sealing ring(liquid, oil, gas)
		Semiconductor	LED substrate(Al2O3, Si, SiC) wafer substrate(Si, SiC, Ge, Ge-Si, GaN, GaAs, GaAsAl, GaAsP, InSb, ZnO, AlN)
		Plastic	PE, E/VAC, SBS, SBR, NBR, SR, BR, PR
		Phone Frame(flat)	back plate
		PCB	adhesive, coating, circuit
		Optics(flat)	optical lens, optical reflector, scintillator cube, holographic glass, HUD glass, screen glass
		Radar	oxide coating plate
		Gemstone	jade, sapphire, agate, etc.
		Others	graphite block, gauge block, micrometer gauge, diamond, friction plate, knife, bearing, metal components, and any other precise hardware.
*NOTE: lapping can only remove slight thickness of workpiece. If need ultra thinning (≤100μm), thinner machine are needed.

SPECIFICATION

Conventional parameter
Parameter/Model	FD-1003LWR	FD-1200X	FD-1600X	FD-2000X
Outside diameter of grinding disc	φ1000mm	φ1200mm	φ1600mm	Φ2000mm
Maximum machining size	φ300mm	Φ600mm	Φ1000mm	Φ1200mm
Main motor power	3KW	11KW	15KW	22KW
Power source	Three-phase 380V	Three-phase 380V	Three-phase 380V	Three-phase 380V
Grinding disc	optional	optional	optional	optional
Grinding fluid	customizable	customizable	customizable	customizable
Correction ring	Outer diameter 530 Inner diameter 480	_ _	_ _	_ _
Plate repairing machine	optional	Taping tray	Taping tray	Taping tray
Grinding speed	0-50rpm	0-50rpm	0-40rpm	0-40rpm
Timing range	99 hours and 59 minutes	99 hours and 59 minutes	99 hours and 59 minutes	99 hours and 59 minutes
Work station	3 groups	3 groups	3 groups	3 groups
Gross weight of equipment	≈1600kg	≈2800kg	≈3200kg	≈4500kg
Overall dimension	Length 1700x width 1300x height 1450mm	Length 2200x width 2000x height 1550mm	Length 2450x width 2050x height 1550mm	Length 1700x width 1300x height 1450mm

SAMPLE DEMONSTRATION (SINGLE PLATE)
Patent
About the Company
Ponda is a high-tech enterprise specializing in all kinds of high precision grinding equipment, polishing equipment and itssupporting products and consumable materials.
We have a production workshop and testing equipment, assembly workers and mechanical design engineers45 people. Delivery & Packing
Packing Details : Packing, 1 pcs/wooden box.
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.
