Nano Grinding Mill Machine Price Turbo Type Horizontal Bead Mill

Product Description

Specifications
Brand Series Volume Seal Type Ex proof Type Inner grinding cylinder material Grinding disc material Pump type Mill speed adjustment way

Chongqing Degold Machine Co., Ltd. We are chemical equipment manufacturer(factory) with more than 20 years experience in China.

horizontal sand wet grinding turbo mill

DEGOLD

ZM-T

60L

double mechanical seal

Ex proof

mold steel

mold steel

diaphragm pump

without inverter

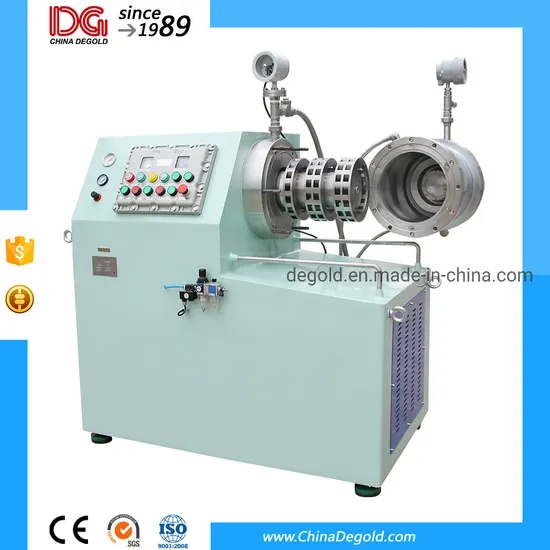

Machine Pictures Description Turbo accelerator makes zirconium beads high energy and homogeneous movement. It ensures high efficiency and energy input to reduce nanometer range for various viscosity materials. High efficiency centrifugal separation system is good for separating the products and grinding medium. Double mechanical seal. Optional ceramic, cast steel, wear-resistant steel grinding chamber and grinding discs designs. Technical Characteristics High volume specific power density of 2 kW/dm3. For large scale production (continuous-pass and circulation operations). Narrow particle size distribution. High efficiency separator system. Smallest grinding medium size is 0.1mm. Exchangeable inner grinding chamber according to abrasive-resistant and corrosion-resistant requirements. Easy installation. Applicable in wide viscosity range (from 20 mPas to 7000 mPas). Low product temperature because of intensive cooling of grinding chamber and grinding shaft. (use rotor cooling). Simple operation and process control. Please refer to fllowing table technical data for more technical information or contact with us.Technical data are different if there are some customized constructions. ZM60SB3310-T

Technical Data
Following is the technical data of ZM-T series sand mills produced by Degold.
ZM-T Series ZM8-T ZM18-T ZM25-T ZM60-T Grinding chamber volume (L) Batch size (L) Drive (kW) Length (mm) Width (mm) Height (mm) Weight (kg) Ex proof Type Seal Type Inner Grinding Cylinder Material Grinding Disc Material Pump Type Mill Speed Adjustment Way

8	18	25	60
100-1500	300-2500	400-3000	500-6000
18.5-22	37-45	45-55	75-90
1400	1800	1900	2300
800	1050	1050	1250
1700	1900	1900	2150
900	1800	2000	3600
Ex proof / Non Ex proof
Single Mechanical Seal / Double Mechanical Seal
SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
SS304 / Hard Steel / Mold Steel / Tungsten Carbide / Ceramic / PU
Diaphragm pump / Gear Pump / Screw pump
With inverter / Without inverter
Note:Technical data are different if there are some customized constructions.We'd like to send you the suitable model sand mills for your production, please feel free to contact with us.

Applications
Paint / Coating Printing Inks Agrochemistry Pigments / Dyes Ceramics / Glass Ores / Minerals / Metals Life Science Food

Top Coating Fillers Cathodic Dip Coating Clear Coating Construction Paint research&development Marine Paint Road Marking Paint Automotive Paint Wood Paint Lab Dispersion Paint Coil Coating etc.	Rotogravure Inks Cold-set Lab Ink jet Heat-set research&development Flexo Printing Inks Screen Printing Inks Sheet-fed etc.
Labratory Suspension Concentrate(SC) Fertilizer Pesticides research&development etc.	Labratory Titanium Dioxide Pigment Production research&development etc.
research&development Lab Table Ware / Sanitary Ware Technical Ceramics Ceramic Pigments LabCeramic Pigments Table Ware / Sanitary Ware Technical Ceramics etc.	Calcium Carbonate Talc research&development Graphite Labs etc.
Pharmaceuticals Biotechnology research&development Labratory Cosmetics / Personal Hygiene etc.	Labratory research&development Cocoa Liquor etc.
More applications, please contact with us.

Series Introduction
Following is the introduction of horizontal sand mills produced by Degold.
Series Description Browse ZM-K ZM-T ZM-E ZM ZM-X ZM LAB

ZM-K series are conical pin typesand mills. This series sand mills are suitable for high viscosity materials wet grinding and dispersion. volume: 6L | 10L | 25L | 60L | 150L	Browse Machines
ZMT series are turbo designsand mills which are suitable for nano meters wet grinding and large productivity. volume: 8L | 18L | 25L | 60L	Browse Machines
ZM-E series sand mills are rotor gap separator sand mills for nano wet grinding. volume: 20L | 50L | 100L | 200L | 300L | 500L | 1000L	Browse Machines
ZM series sand mills are suitable for middle viscosity water based and solvent based poducts wet grinding and dispersion. volume: 5L | 15L | 20L | 30L | 50L	Browse Machines
ZM-X series sand mills are suitable for nano meterswet grinding and dispersion. volume: 5L | 15L | 20L | 30L | 50L | 100L | 200L	Browse Machines
laboratory sand mills are used for research and development. volume: 0.3L | 1.4L	Browse Machines
this table is not real time updating, please contact with us to get latest information.

About Us
Chongqing Degold Machine Co., Ltd. Degold designs, develops, constructs, and installs production lines and advises, trains customers.
Degold is chemical equipment & machinery (wet grinding bead/sand/pearl mill machine) manufacturer in China.
Chongqing Degold Machine Co., Ltd. has always endeavored to develop grinding and mixing technique in chemical industry.
Now we have developed various models Horizontal Sand Mills to fulfill industrial production needs ranging from paints, inks, pharmaceuticals, food, dyes, cosmetics, petrochemicals, and non-mental mines.
Certification All Degold technical experts have been in this field since 80s in the 20th century. We produce strictly as the requirements of ISO9001:2008 Quality System and CE standards.
Customers Machines are popular in domestic and oversea market. We have cooperated with so many famous painting and powder coating manufactures such as 3M, BASF, Akzo Nobel, Sherwin-Williams, Clariant etc.
Markets From 2007, we have begun to service oversea customers directly. Our machines have been exported to many countries and regions such as Peru, United Arab Emirates, Singapore, Romania, New Zealand, Pakistan, Tunisia, Colombia, Singapore, India, Thailand, Morocco, Poland, South Africa, Hongkong, Taiwan, Vietnam, Korea, Belgium, Iran, Argentina, Brazil, Australia, Saudi Arabia, Malaysia, Chile, Indonesia, Spain, Uruguay, Paraguay etc.

Exhibitions China COAT, APCS, PAINTINIDA, CAC, AGROCHEMEX etc.
FAQ
What about product pricing and specifications? Because there are different models, materials for the machines, please feel contact with us to tell us your detail production requirement. Or please feel free to send email to us, we will confirm all points with you and our engineers will select the best suitable machine for you and we will send you the offical quotation form and the technical data.
Do you provide the sample testing free? We can test the customers' products such as paint, ink etc. in our factory by our machines. It is free.
What is a minimum order amount? One set machine.
Which transportation method could l select? By sea. Some small machines, you can choose by air.
What is your product warranty policy? All DEGOLD products carry a 12-month warranty.
Can l become an exclusive distributor of DEGOLD products in my area? Yes, it is possible if we don't already have a representative in your country(region).
