Autoclave for Timber Wood Treatment Equipment High Pressure Vacuum Impregnation Machine

Autoclave for Timber Wood Treatment Equipment High Pressure Vacuum Impregnation Machine

US$12,000.00-36,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DL1236
After-sales Service
Video Technical Support, Online Engineer Support
Application
Autoclave for Wood
Key Word
Autoclave for Wood Processing
Function
Wood Processing / Impregnation
Key Selling Points
Competitive Price
Applicable Industries
Timber Treatment Plant, Manufacturing Plant
Usage
Wood Autoclave in Factory or Project
Heating Method
Electric Autoclave
Material
Carbon Steel Wood Autoclave
Impregnation
CCA Wood Impregnation Autoclave
Capacity
Customized Design as Your Need
Designed Pressure
1.4MPa Wood Autoclave
Core Components
PLC, Pressure Vessel, Pump
Video Outgoing-Inspection
Provided
Delivery
35-40 Working Days
Pressure
0.1MPa≤p<1.6MPa
Transport Package
Standard Packing
Specification
1000*8000MM
Trademark
MOSEN
Origin
Shandong, China
HS Code
8419893000
Production Capacity
300 Sets/Year

Packaging & Delivery

Package Size
36.00cm * 28.00cm * 6.00cm
Package Gross Weight
2.000kg

Product Description

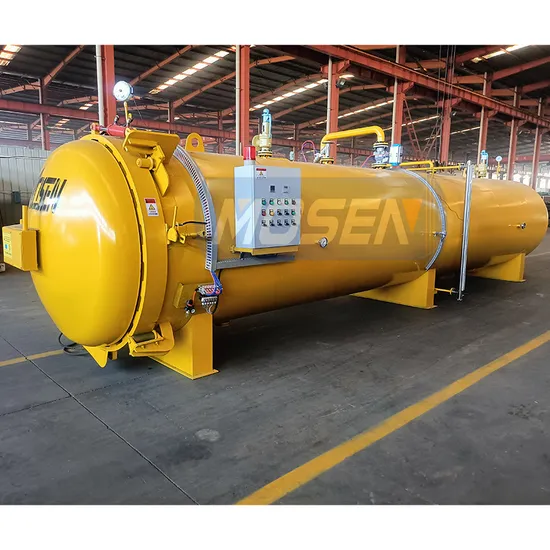

Timber Treatment Wood Impregnation Autoclave
Product Description
Timber treatment is necessary to increase the durability and lifespan of wooden material. Water damage, insect infestations, and mold or fungus can otherwise degrade the integrity of wooden structures. Timber impregnation treatment under a vacuum-pressurized autoclave can make the wood resistant to such threats, exposing it to an environmentally friendly treatment process for higher strength while maintaining its structure. An autoclave is often ideal for treating wood for buildings, shutters, and door or window frames. As a premier manufacturer of autoclaves for treating and impregnating timber, Mosen can assist you in choosing the right autoclave for your application.
Autoclaves are machines that provide a pressurized environment within a chamber in which technicians can introduce steam or other solutions at a controlled temperature and pressure to treat objects for various applications.
The timber impregnation process starts by forming a vacuum within the autoclave to remove air from the wood and generate pressure. The machine injects the untreated wood with a preservative. With the air removed, the preservative can thoroughly soak into the wood and will not harm its structure or appearance. The preservative improves the wood's resistance to environmental wear, rain, and insect damage while also making the wood last longer. After processing, workers can remove the impregnated wood from the autoclave to dry and begin preparation for shipment.
MODE DIAMETER LENGTH CAPACITY D/PRE VACUUM VOLTAGE
DL1080.A 1000MM 8000MM 6.28m³ 1.4Mpa -0.095 380V
DL1580.A 1500MM 8000MM 14.1m³ 1.4Mpa -0.095 380V
DL1780.A 1700MM 8000MM 18.1m³ 1.4Mpa -0.095 380V
DL17120.A 1700MM 12000MM 27.2m³ 1.4Mpa -0.095 380V

WOOD TREATMENT EQUIPMENT & MACHINERY
Numerous pieces of equipment go into the impregnation treatment of timber. The following components play a primary role:
1.Tram cart/car. Workers transport a load of timber to and from the autoclave on a cart.
2.Autoclave. They then unload untreated timber into the autoclave or an ASME-certified tank for processing in a vacuum-pressure environment.
3.Piping network. Piping and valves ensure the liquid preservatives travel safely throughout the system from substance storage to the autoclaves using a series of pumps.
4.Pumps and compressors. Wood treatment depends on a combination of pump types or compressors to pull air and preservatives in and out of the autoclave and preservative tanks. For example, a vacuum pump begins the process, removing air from the autoclave chamber. Either an air compressor or a pressure pump will then maintain a predetermined pressure during wood preservation. For the actual treatment, a transfer pump delivers a steady supply of preservatives into the autoclave and then back into storage at the end of the process.
5.Storage repositories. Preservatives for wood treatment are often concentrated, meaning that workers must dilute them before use. Depending on a preservative's base of oil or water, a treatment facility typically utilizes at least three containment tanks: one to store the concentrate, one for the base material, and one to contain the preservative after dilution. Application
WOOD AUTOCLAVE PRODUCTS
Treating wood products within an autoclave effectively prevents their damage and decomposition. With a reliable product strength, treated wood becomes a versatile product for a variety of applications, including:
Boat dock, walkway, and bulkhead piling
Commercial lumber
Decking
Door frames
Fencing
Lumber for building construction
Railroad cross-ties
Shutters
Utility poles
Window frames
Applications rely on treated wood products to deliver improved longevity and reduce the need to replace them, so autoclave-impregnated wood offers.
Main Products
Company Profile
Packaging & Shipping
FAQ
A1: DO YOU HAVE OEM,ODM SERVICE?
Q1: Yes, we have OEM,ODM service, besides low MOQ.
A2: WHAT ARE YOUR TERMS OF DELIVERY?
Q2: We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you.
A3: WHAT ABOUT THE LEAD TIME FOR MASS PRODUCTION?
Q3:Honestly, it depends on the order quantity and the season you place the order. Generally speaking, the production lead time is within 10-15days, however, we suggest that you start inquiry two months before the date you would like to get the products at your country.
A4: WHEN CAN I GET THE PRICE AND HOW TO GET THE FULL PRICE?
Q4:If your information is enough, we will quote for you in 30mins-1 hour on working time, and quote in 12 hours on off-work time. Full price base on type, size, material, thickness, and quantity. We welcome your inquiry. If you are very urgent to get the price, please tell us in your email so that we will deal with your inquiry priority.
A5: ARE YOU A MANUFACTURER OF AUTOCLAVE?
Q5: Yes, we are the autoclave and food retort manufacturer and we have our own factory which is loated in Zhucheng city, Shandong province.
