Pet Bottle Blowing Machine/Blow Molding Machine/Water Bottle Machine/Plastic Bottle Machine/Plastic Bottles Machinery/Semiautomatic Blow Molding Machine with CE

Pet Bottle Blowing Machine/Blow Molding Machine/Water Bottle Machine/Plastic Bottle Machine/Plastic Bottles Machinery/Semiautomatic Blow Molding Machine with CE

US$5,250.00 1 Set (MOQ)

Basic Info.

Model NO.
TS-3L-II
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
Free Service After Sales
Transport Package
Wooden Case
Specification
TS-3L-II
Trademark
TAISO
Origin
China
HS Code
8477309000
Production Capacity
50sets/Month

Product Description

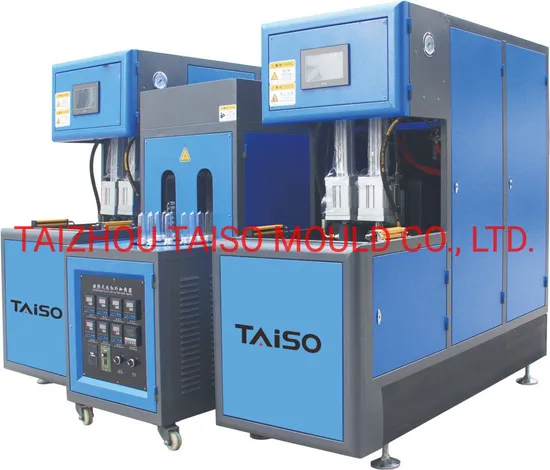

TS-3L-II Semi-automatic stretch blow moulding machine,designed by CE standard. With microcomputer controlling system, it controls various technical parameter needed more accurately and more steadily. Only one person without special training operates it more easily and more safely.
Features
1. Produce bottle from 0.L to 3L bottles
2. Output capacity up to 800 bottles/hour for 0.5L using two cavities blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms.
8. Operated only by one person without special training.
9. Simple installation & startup adjustment.
Model TS-3L
(1 Blower & 1 Heater)
TS-3L-II
(2 Blower & 1 Heater)
Max. Volume 3L 1.8L
Output 300-900BPH 1200-1500BPH
Number of Cavities 1 & 2 Cavity 2 Cavity
Neck diameter 18-120mm 18-120mm
Max. diameter 105-140mm 130mm
Max. Bottle height 330mm 340mm
Mold thickness 70-230mm 70-230mm
Clamping stroke 190mm 190mm
Rated power 14kw 20kw
Power consumption 5-8kw 10-13kw
Blower size 1600*620*1550mm 1600*620*1550mm*2
Heater size 1700*600*1350mm 2160*600*1350mm
Weight 850kgs 1400kgs
