Wanlong Diamonds Granite Cutting Tools Core Bit Diamond Segment for Marble Stone
| US$0.65-1.05 | 1 pcs (MOQ) |
Basic Info.
Model NO.
D300-D3500
Blade Material
Diamond
Brand
Wanlong Segment
Place of Origin
Quanzhou, Fujian, China
Product Name
Wanlong Diamond Segment
Material
Man Made Diamond Powder + Metal Powder
Usage
Granite, Marble, Sandstone Cutting
Application
Quarry, Factory
Cutting
with/Without Water
Segment Bond Blade
Depends on Cutting Material
Segment Type
Sandwich/Multi-Layer
Technology
Cold Pressing/Hot Pressing
Transport Package
Crato/Crate
Specification
24*8*13
Trademark
wanlong
Origin
Quanzhou, China
HS Code
8466910000
Production Capacity
100sets/Month
Product Description

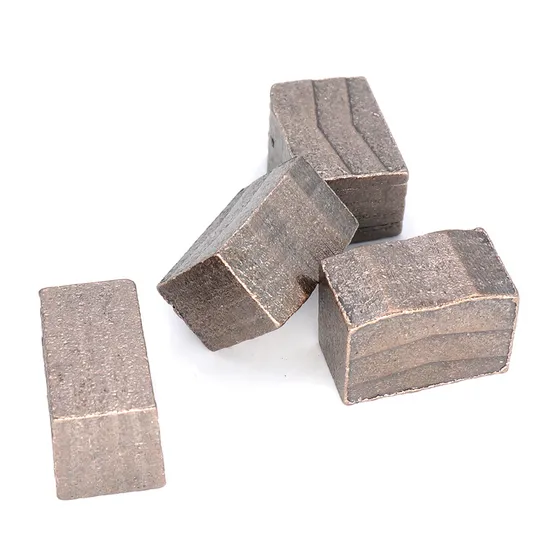

Wanlong Diamonds Granite Cutting Tools Core Bit Diamond Segment for Marble Stone
Characteristics of Products
1. The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: smooth cutting, flat surface and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.
4. M-shape segment is easy for diamond opening.
| Product Name | Diameter (mm) | Steel Core Thickness(mm) | Segment Dimension(mm) | Segment Number | Application |
| Edge Cutting Segment For Stone | 300 | 2.2 | 40x3.2x10(15,20) | 21 | Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone |
| 350 | 2.2 | 40x3.2x10(15,20) | 24 | ||
| 400 | 2.6 | 40x3.6x10(15,20) | 28 | ||
| 450 | 3.0 | 40x4.0x10(15,20) | 32 | ||
| Splitting Segment For Stone | 500 | 3.0 | 40x4.0x10(15,20) | 36 | |
| 550 | 3.6 | 40x4.6x10(15,20) | 40 | ||
| 600 | 3.6 | 40x4.6x10(15,20) | 42 | ||
| 650 | 4.0 | 40x5.0x10(15,20) | 46 | ||
| 700 | 4.0 | 40x5.0x10(15,20) | 50 | ||
| 750 | 4.0 | 40x5.0x10(15,20) | 54 | ||
| 800 | 4.5 | 40x5.5x10(15,20) | 57 | ||
| 850 | 4.5 | 40x5.5x10(15,20) | 58 | ||
| Block Cutting Segment For Stone | 900 | 5.0 | 24x7.0/6.2x13(15,20) | 64 | |
| 1000 | 5.0 | 24x7.0/6.2x13(15,20) | 70 | ||
| 1200 | 5.5 | 24x7.4/6.6x13(15,20) | 80 | ||
| 1400 | 6.0 | 24x8.0/7.2x13(15,20) | 92 | ||
| 1400 | 6.5 | 24x8.4/7.6x13(15,20) | 92 | ||
| 1600 | 7.2 | 24x9.2/8.4x13(15,20) | 108 | ||
| 1800 | 7.5 | 24x10/9.2x13(15,20) | 120 | ||
| 2000 | 8.0 | 24x11/10x15(20) | 128 | ||
| 2200 | 9.0 | 24x11/10x15(20) | 132 | ||
| 2500 | 9.0 | 24x12/11x20(30) | 140 | ||
| 2700 | 9.0 | 24x12/11x20(30) | 140 | ||
| 3000 | 9.3 | 24x13/12x20(30) | 160 | ||
| 3500 | 9.5 | 24x13.5/12.5x20(30) | 180 | ||
| Other specifications are available upon request. | |||||
| Silent and non-silent blades are available for choice. | |||||
