Biedas Iepe Signal Conditioner Eleven Channels Constant Current Source Paired with Acceleration Sensor

Product Description

IEPE Signal Conditioner Product Description Features
The BYDIE04 is a specialized constant-current power supply. When paired with our built-in circuit acceleration sensor, data collector, and computer, it forms an optimal vibration measurement system. It can be customized with up to 12 channels.
1. Front panel details
ICP Sensor Input Sockets (INPUT)
The "ICP Sensor" input sockets (IN1…IN4) are four Q9 sockets. They can supply a constant current to the built-in circuit acceleration sensor. Each of these corresponds directly to one of the "Signal Output (OUT1…OUT4)" Q9 sockets.
(2) Signal Output Sockets (OUTPUT)
The "Signal Output Sockets" (OUT1…OUT4) are four Q9 sockets. Each of these corresponds directly to one of the "ICP Sensor IN1…IN4" Q9 sockets.
2. Rear panel details
(1) Power Switch (POWER)
When the power switch is in the "on" position, the power is connected, and the indicator light on the power switch illuminates.
When the power switch is in the "off" position, the power is disconnected.
Power ocket
This is a 220V power socket. Product Parameters

Model	Number of channels	Model	Number of channels
BYDIE01A	1CH	SAIE07A	7CH
BYDIE02A	2CH	SAIE08A	8CH
BYDIE03A	3CH	SAIE09A	9CH
BYDIE04A	4CH	SAIE10A	10CH
BYDIE05A	5CH	SAIE11A	11CH
BYDIE06A	6CH	SAIE12A	12CH

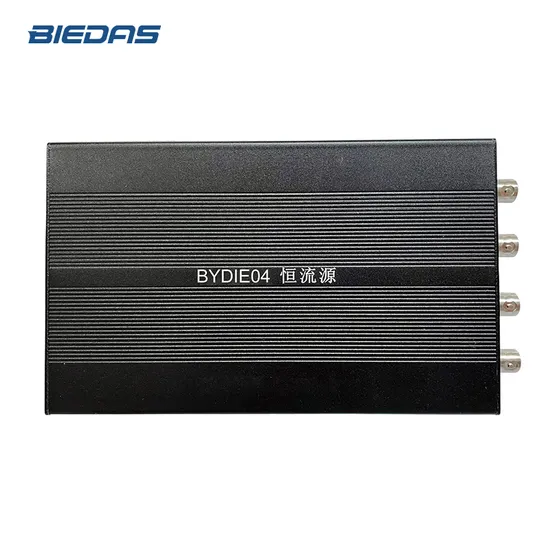

Detailed Photos
