Mk2120 High Precision Hydraulic Horizontal Spindle CNC Internal Grinding Machine

Mk2120 High Precision Hydraulic Horizontal Spindle CNC Internal Grinding Machine

US$65,000.00-80,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
MK2120
Type
Internal Grinding Machine
Processing Object
Workpiece
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Internal Grinding Machine
Precision
High Precision
Certification
ISO 9001
Condition
New
Grinding Hole Diameter Range
20-200mm
Maximum Grinding Depth
200mm
Inner Hole Roundness
2micrometer
Inner Hole Cylindricity
3micrometer
Inner Hole Surface Roughness
Ra0.4 Micrometer
Transport Package
Standard Export Wooden Case
Specification
3400*2500*2000
Trademark
CHANGYI
Origin
China
HS Code
8460241900
Production Capacity
50 Pieces/Year

Packaging & Delivery

Package Size
340.00cm * 250.00cm * 200.00cm
Package Gross Weight
5800.000kg

Product Description

Product Description
Main purposes of the machine tool:
MK2120 is a two-axis, two-linkage CNC internal grinder, capable of grinding the inner bore, inner conical hole, stepped hole, inner end face, and outer end face of workpieces. The grinding cycle is automatically completed, including automatic feeding, automatic rough grinding, fine grinding, automatic wheel dressing, automatic compensation, manual compensation, and other functions.
Processing object:
The main processing objects of this machine tool are: This machine tool can grind inner holes, step surfaces, and inner end faces. It is suitable for inner round processing of parts with diameters ranging from 20-200mm and inner holes up to 200mm.
Product Parameters
Key Technical Parameters for MK2120 CNC Grinding Machine:
Serial number Name Specification
1 Grinding hole diameter range 20-200mm
2 Maximum grinding depth 200mm
3 Maximum diameter of the workpiece 600mm
4 Maximum load capacity of the workpiece 50kg
5 Inner hole roundness 2μm
6 Cylindricity of inner hole 3μm
7 Inner hole surface roundness Ra0.4

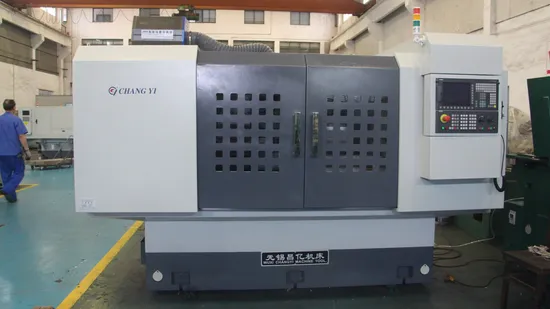

Detailed Photos
Company Profile
Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Certifications
After Sales Service
1. Accuracy acceptance: The roundness, cylindricity, and surface roughness of the inner hole shall be inspected in accordance with the technical agreement.
2. The acceptance inspection will be conducted in two steps. In the first step, the Party A team will conduct an on-site inspection of the equipment at the Party B's site, in accordance with the standards stipulated in the technical agreement. In the second step, a spot check will be conducted on the processing accuracy of the equipment. After a continuous idle running for 2 hours, the grinding test piece will be performed. If it meets the requirements stipulated in the technical agreement and drawings, it will be deemed as qualified.
3. During the acceptance period of the equipment, Party B shall provide free training to Party A's operating personnel and maintenance personnel.
4. Machine tool warranty
Upon acceptance of the machine tool, Party B shall provide a one-year warranty service for the quality of the main machine. After the warranty period, Party B will still provide high-quality services.
