US$700.00-2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO9001:2015
Application
Wood Splitting Mounted on Excavator,Skid Steer
Power Type
Hydraulic System
Quality Control
ISO&100% Inspection Before Delivery
Transport Package
Plywood Case
Specification
As negotiated
Production Capacity
500sets/Month
Product Description

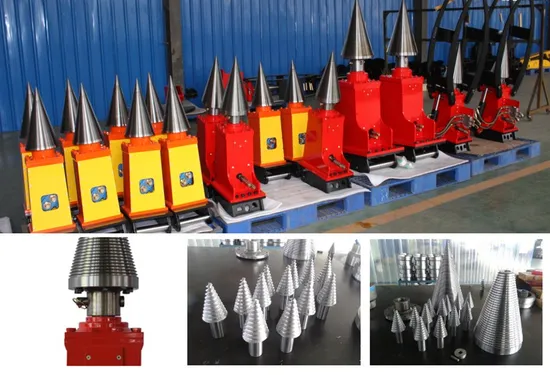

KINGER CONE LOG SPLITTER for forestry is flexible to be mounted on construction machine from 2 to 30 ton excavator/skid steer/backhoe loaders,which can be high efficient for logging woods.
. Main Features: 1) Nine widely Heavy Duty Models from YDH12 to YDH250
2) Pipes and Hitch (excavator) included
3) Can be manufactured to fit a full range of machines including skid steer, backhoes, excavators & some other hydraulic equipments
4) Removeable hardened cone tip
5) More stronger gearbox reduction
6) Saves you time and increases your profit!
Model | YDH12 | YDH18 | YDH40 | YDH60 | YDH80 |
Applicable(T) | 2-4 | 3-5 | 3-6 | 5-8 | 6-12 |
Max Torque(Nm) | 1200 | 1870 | 3700 | 5900 | 8200 |
Working Pressure(Bar) | 100-170 | 100-170 | 100-170 | 100-190 | 120-200 |
Rated Oil Flow(Lpm) | 30-70 | 50-95 | 40-75 | 40-90 | 60-100 |
Speed Range(rpm) | 30-102 | 32-97 | 35-98 | 30-90 | 32-90 |
Cone size(mm) | φ200x370 | φ200x370 | φ200x400 | φ300x540 | φ300x540 |
Max log diamter(m) | 0.4 | 0.5 | 0.8 | 1 | 1 |
- Surface hardening special treatment with screw cone means it will show hard and sharp performance during logging woods. - One-year warranty for motor and 18-month warranty for gearbox.
- Safer than hand log splitter as usual
-More flexible and safe than by hand
Welcome to send inquiry
