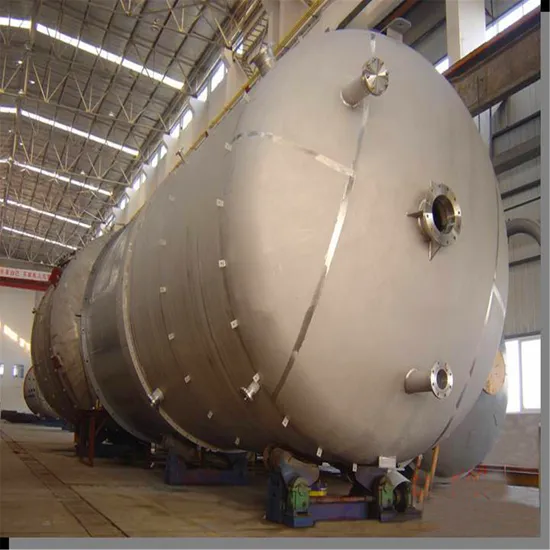

Titanium Reactor with Agitator Mixing Tank/Titanium Mixing Agitator Reactor

Titanium Reactor with Agitator Mixing Tank/Titanium Mixing Agitator Reactor

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
ETRAMT1
Certification
ASME
Application
Vaporizer, Heater, Condenser, Cooler
Principle
Mixing Heat Exchanger
Style
Plate Type
Transport Package
Iron Frame
Specification
customized
Trademark
ELEGANT
Origin
China
Production Capacity
100 PCS / Year

Product Description

Titanium, Nickel and Stainless steel Equipment and Machinery
Titanium/ NI/Zr/ Stainless steel tubular heat exchangers, shell and tube heat exchanger, seperator, condensers, evaporators, reaction tanks, storage tanks, snake-pipe heat exchanger, cathode drums, plates for electrolysis, electrodes, mesh baskets, propellers, Separator, packed tower, plate tower, filter, stripping tower, urine washing tower, deaerator, oil trap, buffer, scrubber, absorption tower, copper washing tower, drying tower, points cylinder, spherical tank or sphere, storage Vessel , tower or column vessel,Reaction vessel, distillation column,agitator, etc.
Materials: Titanium, nickel, titanium/steel, nickel/steel, copper, stainless steel/steel, carbon steel composites
Pressure: low-pressure, medium-pressure and high-pressure.
Temperature: low-temperature heat exchanger, medium-temperature heat exchanger,but also high-temperature heat exchanger.
Medium: not only non-flammable, non-toxic and non-corrosive medium but also flammable, toxic, corrosive medium and highly flammable, highly toxic, highly corrosive medium.
Applicable Industries: petrochemical, coal chemical, precision chemical, nuclear power, metallurgical, pharmaceutical, machinery, food, pesticide, rubber, aerospace, marine, dye, new power equipment and so on.
Our titanium equipment can be custom-made according to customer's demands. Please inquire.
Our advantages: reliable quality, in-time service and great price. The leading manufacturer of column pressure vessel
All Applications Covered
ELEGANT heat exchangers are used in a wide variety of applications, but we especially excel at manufacturing cooling systems for the oil processing industry.
With many years of experience in the field and our ability to design and manufacture to TEMA R, ELEGANT shell and tube heat exchangers are frequently used in refineries.
In fact, we construct and provide complete cooling systems for refineries such as finned tube air coolers.
Simple and Rigid Design
ELEGANT shell and tube heat exchangers comprise of a pressure vessel (shell) containing a bundle of tubes. The ends of the tubes are secured on a mounting plate (tube sheet) that can be either fixed to the shell or movable.
Exhaust fluid passes through the tube bundle. Heat is transferred away from the fluid by circulating a cooling medium inside the shell over the tubes. Using finned instead of bare tubes increases heat transfer by providing a larger surface area.
More than one heat exchanger may be combined to form a large single cooling unit, especially when skid-mounted.
Key Design Advantages
ELEGANT shell & tube heat exchangers combine the following key advantages:
Suitable for use in systems with high pressures and operating temperatures
Space-saving due to compact design and the ability to vertically stack several heat exchanger units.
Cost-effective, especially for large flow volumes
Shell & Tube Heat Exchanger Tube Bundle Designs
The performance of a shell and tube heat exchanger is mainly determined by the design of its tube bundle. Each design comes with a different set of advantages and limitations.
Fixed Tube Sheet
Design feature: Both tube sheets welded to the shell.
Advantages
Simple and economical design
The inside of the tubes can be cleaned
Limitation: No room for expansion of the tubes at high temperatures
U-Tube Bundle
Design Feature: Tubes bend on the shell site and fixed on a movable tube sheet on the tube side.
Advantages
Full thermal expansion of tubes possible
Tube bundle can be removed for cleaning on the outside
Limitations
Only even tube passes possible
More expensive than using a fixed tube sheet
Removable Bundle
Design Feature: The tube sheet of the rear header is not welded to the shell.
Advantages
Full thermal expansion of tubes possible
Tube bundle can be removed for cleaning on both the outside
Limitation: More expensive than using a fixed tube sheet and U-tube.
Why We Build Great Shell & Tube Heat Exchangers
We manufacture shell and heat exchangers of all TEMA types, such as BEM, CFU, and AES.
To save valuable floor space, ELEGANT S&T heat exchangers have a compact design and aim for a skid-mounted layout where possible.
With many years of experience, we know what is important and where the pitfalls are. This enables us to tailor each s&t heat exchanger to your specific requirements and make sure it is delivered in full compliance with the specifications.
Titanium/ NI/ZI/ Stainless steel tubular heat exchanger, shell and tube exchanger, seperator, condensers, evaporator, reaction tanks, storage tanks, snake-pipe exchanger, cathode drums, electrodes, mesh baskets, propellers, Separator, packed tower, plate tower, filter, stripping tower, urine washing tower, deaerator, oil trap, buffer, scrubber, absorption tower, copper washing tower, drying tower, points cylinder, spherical tank or sphere, storage Vessel , tower or column vessel,Reaction vessel;
