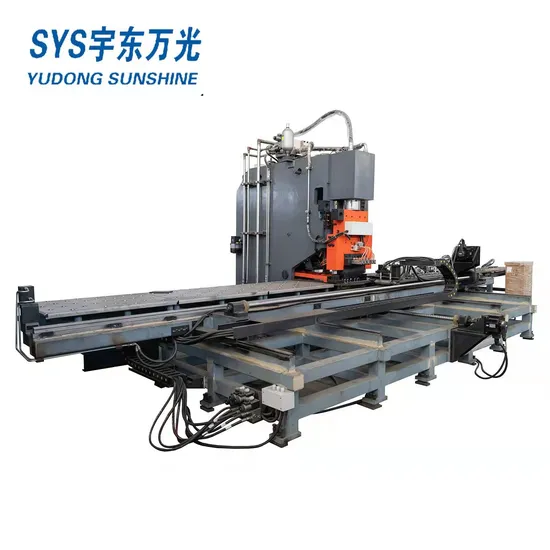

Cutting Machine Drilling Machine CNC Tube Sheet Drilling Machine Beam Drilling Machine

Cutting Machine Drilling Machine CNC Tube Sheet Drilling Machine Beam Drilling Machine

US$10,000.00-100,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YBJZ100
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Sea
Specification
25*4.5*4.5m
Trademark
sunshine
Origin
China
HS Code
84592100
Production Capacity
50 Sets / Month

Product Description

Introduction of Machine
High speed metal plate CNC drilling machine is mainly composed of machine bed worktable, Gantry-moving frame, CNC vertical ram type drilling spindle head, automatic chip conveyor and circulating cooling device, hydraulic system, pneumatic system, electrical system, automatic lubrication system, etc. It has the characteristics of high precision, high efficiency, high rigidity, high reliability, etc.
The machine is a gantry moving CNC drilling machine, which is mainly used for high-efficiency drilling of flanges, discs, ring types, and tube sheet parts. It can drill through holes, drill blind holes, and step holes on simple materials and composite materials. And other functions, using hard alloy drill bit internal cooling high-speed drilling or high-speed steel twist drill external cooling drilling.
The machining process of the machine tool is digitally controlled and the operation is veryconvenient. It can realize automation, high precision, multiple varieties and mass production.
Commodity of Main Accessories
Detail description
Machine Bed Worktable
Application: The machine bed frame is made of
steel plate welded structure, and the stress is
removed by tempering heat treatment, and the
accuracy is stable. The bed is installed on the
foundation through anchor bolts. Two linear ball
guide rails with high load-bearing capacity are
mounted on the plane parallel to the bed, and a
high-precision ball screw is mounted on each side
of the bed. A movable numerical control sliding
table is installed on the guide rail slider. The
longitudinal movement of the CNC sliding table is
driven by two AC servo motors for longitudinal
movement.
Gantry-moving frame
The gantry adopts steel plate welded structure, and
the stress is removed by tempering heat treatment.
The two outriggers are respectively installed on
the numerical control sliding table of the bed, and
move longitudinally along with the numerical
control sliding table. Two ball linear guides are
installed transversely in front of the cross beam of
the gantry, and a precision ball screw is installed
in the middle of the linear guides. The ball screw
is equipped with a horizontally movable CNC
slide. The CNC sliding plate drives the screw nut
of the ball screw through an AC servo motor to
realize lateral movement (X axis).
CNC vertical ram type drilling spindle head
On the CNC slide in front of the gantry-moving
frame, there are two ball linear guides and one ball
screw, on which is equipped with a ram-type
power head that can move vertically. The power
head is driven by the screw nut of the ball screw
with a brake AC servo motor for verticalmovement (Z axis). A balancing oil cylinder is
installed on both sides of the power head box to
balance and stabilize the vertical movement of the
power head. The ram-type power head box is made of
high-quality gray iron casting, and the stress is
removed by tempering heat treatment. The power
head spindle adopts Taiwan key high-precision
high-speed internal cooling spindle. The spindle
taper hole BT50 has a butterfly spring automatic
tool broaching mechanism, and a hydraulic (air)
cylinder loosens the tool, making it very
convenient to change the tool. With center water
outlet and pneumatic chip blowing function.
Spindle rotation adopts Jianchun spindle special
servo motor to drive the spindle through a timing
belt, 1-2.5, low speed and large torque, which can
withstand heavy load drilling.
Y axis moving unit
Transmission mode: precision screw transmission.
Y axis moving unit
Protection measures: sheet metal cover to prevent
the servo motor from dust pollution.
X axis moving unit
Transmission mode: precision screw transmission.
X axis moving unit
Protection measures: sheet metal cover to prevent
the servo motor from dust pollution. The Y-axis of the machine is equipped with a stainless steel protective cover, and both sides of the
X-axis are equipped with a flexible protective cover. Waterproof baffles are installed around the
workbench.
CNC electrical cabinet
The electrical cabinet is installed at the front left
of the machine. The electrical cabinet is equipped
with circuit breakers, power supplies, servo
transformers, control transformers, servo motor
drives, spindle motor inverters, and some
low-voltage electrical appliances required by the
equipment.
The CNC system of this machine tool is made by
YOKOGAWA, with electronic handwheel, which is
powerful and easy to operate. Equipped with a
portable computer and RS232 interface. With
processing preview and review functions, the
operation interface has man-machine dialogue,
error compensation, automatic alarm functions, and
can realize CAD/CAM automatic programming.
Hydraulic System
This machine is equipped with a hydraulic system
to complete the hydraulic balance of the vertical
ram and the hydraulic tool loosening of the
spindle. (And choose hydraulic clamping
manipulator according to customer requirements)

Plat Drilling Machine Main Parameters
Item Model Unit PMZ2016H
Max working size Length x width Mm 2000×1600mm(Maximum)
Overlay thickness Mm 100

Drilling spindle
Number of spindle Pcs 1
Morse taper of spindle BT50 Taper hole
Variable speed method Inverter infinitely variable speed
Speed of spindle R/min 30-3000
Stroke length of vertical ram drilling head Mm 350
Drilling diameter Mm Φ12-Φ50
Spindle motor power KW 15.0 KW
Servo motor feeding power KW 2.0 KW

Workpiece hydraulic clamping
Hydraulic pump pressure/flow Mpa/L/Min 6.5MPa/22L/min
Hydraulic pump motor power KW 2.2 KW
Hydraulic clamp clamping force KN 7.5 KN
Number of clamping cylinders Pcs 12 Pcs

Electric control

Y axis
Y axis travelling Mm 2000Mm
Y axis moving speed M/min 0-10 M/min
Y axis servo motor power KW 2.0 KW * 2

X axis
X axis travelling Mm 1600Mm
X axis moving speed M/min 0-10 M/min
X axis servo motor power KW 1.5kw

Z axis
Vertical ram feed motion (Z axis) stroke length Mm 180mm
Z axis moving speed M/min 0-5.0 M/min
Z axis servo motor power KW 2KW with brake

Drilling precision
Positioning Precision in "X" and "Y" axis Mm ≤0.08mm/Entire Journey
Re-positioning precision in "X" and "Y" axis Mm ≤0.04mm/Entire Journey

Pneumatic system
Compressed air storage pressure

MPa

≥0.5MPa

Chip removal and cooling System
Chip conveyor type Steel flat chain
Number of chip conveyors PCS 1 Pcs
Chip removal speed M/min 1 M/min
Chip conveyor motor power KW 0.75 KW
Cooling pump motor power KW 0.25 KW
Cooling box volume L 200 L
Automatic lubrication System Lubrication pressure MPa 2.0 MPa
Lubrication point oil volume ML 0.1 ML
Lubrication Cycle Minutes 6-10 min
Electrical System CNC Controller System YOKOGAWA
Number of CNC Axis 3 Axis
Machine size LxWxH Mm 5000x3000x2900mm

Total motor power
KW About 25KW
Machine Bed weight(appx) T More than 8.5 Tons
Shipping with Container 1 x40 ft Container

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Our company passed the ISO9001 quality management system certification and intellectual property management system certification, through the research and development of independent innovation has been the including invention patents,computer software copyright,the independent intellectual property rights of more than 50 items. there is a professional technical team and staff team for many years engaged in Angle steel tower of tube processing equipment,NC plate processing equipment,automobile industry of steel structure,parking equipment and other non-standard numerical control processing equipment research and development,design and manufacture.They have a profound theoretical foundation and rich practical experience. Our principle is"Sincere desire,All for users,For users all."And"high-class service,high-class technique and high-class production"is our promise and our persue as well.We can according to your requirement to design and manufacture all kinds of frock and nonstandard equipment that you need urgently. Moreover,we supply the fittings of all kinds of angle tower equipment and pipe tower equipment and bear the maintenance business.Our products enjoy a high praise in the domestic market,as well as the world market especially in India,Russia, Ukraine etc. Our company are sincerely willing to cooperate with all the customers to create glory.We welcome all the friends to visit us for the guidance, negotiate and cooperation!
