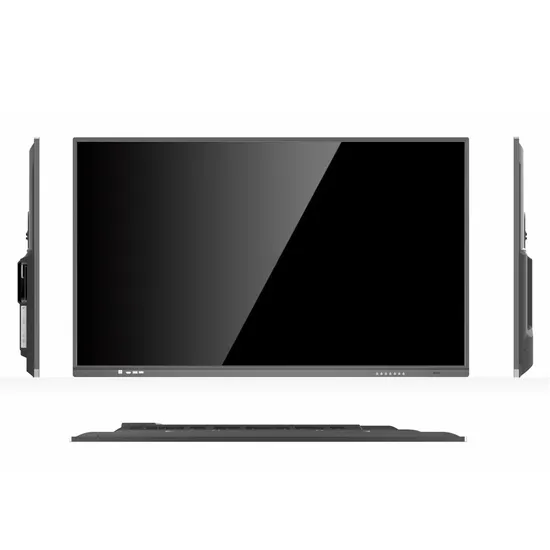

85 Inch Interactive Flat Panel Android 14 Whiteboard 4GB 32GB Touch Screen for Meeting Presentation
Basic Info.
Compatibility
Android, Windows
Product Type
Whiteboard
Resolution
3840(H) ×2160 (V)
Size
55/65/75/86/98 Inch
Floor Stand
Optional
Wall Mount
Standard
CPU
I3/I5/I7
Transport Package
Carton Box
Trademark
CLOVER/OEM
Origin
China
HS Code
8471609000
Production Capacity
50000pieces/Month
Product Description
Product Parameters 86 inch| Appearance | Fuselage material | Aluminum alloy surface frame, oxidation sand blasting process |
| Front frame color | Black [standard], can be customized silver black or other colors | |
| Front frame glass | glass/Anti-glare explosion-proof grade 7 tempered glass | |
| Front frame pen slot | Two writing pen magnetic grooves in front frame | |
| Panel features | Resolution | 3840(H) ×2160 (V) |
| Panel Type | IPS | |
| Respones Time | <8ms | |
| Aspect Ratio | 16:9 | |
| Display Area | 1654mm×931mm | |
| NTSC | 72% | |
| Contrast Ratio | 5000:1 | |
| Display Color | 1.07Billon colors | |
| Pixel Pitch | 0.430(H)*0.430(V) | |
| Back Light Unit | DLED | |
| Brightness | 300-350cd/m2 | |
| View Angle | R/L 178 (Min.), U/D 178 (Min.) | |
| Main board | Chipset | V100 |
| OS Version | 14 | |
| CPU | Octa-core A55 1.2GHz,up to 1.5GHz | |
| GPU | MaliG52 MC2_600MHz | |
| DDR | 4GB (Maximum 8G) | |
| EMMC | 32G ((Maximum 128G)) | |
| Touch | 20pints | |
| Decode | support VbyOne 4K@60Hz/4K@120Hz/8K@30Hz | |
| support OS | support android, Chrome OS,Linux,Chromium OS | |
| Main board Inputs & Outputs (rear cover) | HDMI Input | 1 |
| HDMI Out | 0 | |
| USB 2.0 | 2 | |
| USB 3.0 | 0 | |
| USB TOUCH OUT | 1 | |
| RS232 | 1 | |
| TF slot | 1 | |
| SPDIF | 1 | |
| Audio out | 0 | |
| RJ45 IN | 1(100M) | |
| RJ45 out | 0 | |
| Audio In | 0 | |
| DP IN | 0 | |
| usb Type-c In | 0 | |
| VGA IN | 0 | |
| VGA AUDIO | 0 | |
| WiFi&BT | WiFi 5, BT 5.0 | |
| Front Interface | Option 1 | HDMI in*1 USB touch*1, Publick USB3.0*1, Publick USB 2.0*1 Type C*1(USB only) |
| Option 2 | HDMI in*1, USB touch*1, Publick USB3.0*3, Type C*1(DP1.2+USB3.0+ USB touch2.0+15W power supply) | |
| Front Key | Function key | Switch, volume +, Volume -, eye protection, screen recording, Home, Settings, touch switch (single button optional) |
| Microphone(optional) | Quantity | 8 |
| Distance of a pickup | 0~8m | |
| Sound/speaker feature | speaker type | 2pcs Built-in,Left/Right |
| speaker output | 20W × 2 | |
| Audio Stereo | Balance, automatic volume control, surround sound, fiber optic mode, the equalizer | |
| Touch screen | Touch Type | IR(Infrared recognition) |
| Touch Tool | Passive infrared pen | |
| Cover Glass | Physical tempered 7 explosion-proof glass | |
| Touch Resolution | 32768x32768 | |
| Touch Accuracy | ±1mm | |
| Touch Point | 50Points touch(windows) ,20points touch(android) | |
| Annotation Over Any Source | Yes | |
| Respones Time | <8ms | |
| Palm Detection | Yes | |
| Pens Included | 2 stylus | |
| Compatibility | Windows 11/10/8/7/XP/ Linux/Mac/Android /Chrome | |
| OPS PC (NA, Optional) | CPU | Intel Core i3/i5 / i7... |
| Operating system | Windows11/10/8/7/XP /Linux | |
| Wall mount | VESA Standard | |
| Power | Input voltage | AC:100~240V 60/50HZ |
| Typical | ≤260W | |
| Max Power(W/OPS) | ≤340W | |
| Standby | ≤0.5W | |
| Accessories | User manual | 1 |
| Remote control | 1 | |
| Power cable | 1 | |
| HDMI Cable | 0(Optioal) | |
| USB touch cable | 0(Optioal) | |
| Writing Pen | 2 | |
| VESA | 1 | |
| Environmental factors | Working Tempreture : 0ºC~40ºC | |
| Working Humidity : 10%~80% | ||
| storage Tempreture:-10ºC~60ºC | ||
| storage humidity:5%~90% | ||
| Structrual Info | Stadnard machine Unit Dimension(L*H*W) mm | 1707×108×1013 |
| W/camera machine Unit Dimension(L*H*W) mm | 1707×108×1026 | |
| Package Dimension(L*H*W) mm | 1880×210×1150 | |
| N.W (kg) | 47 | |
| G.W (kg) | 60 | |
| VESA Mount | 400(V)×600(H) | |
| wooden box Dimension Length * Width * height (mm) | 1950×265×1310(with pallet) | |
| Weight per unit (including wooden cases) | 90KG | |
| Loading Qty CBU | 20'GP | 30pcs |
| 40'HQ | 140pcs | |
| Loading Qty SKD | 20'GP | 30pcs |
| 40'HQ | 127pcs | |
