Stainless Steel Material Pneumatic Control 3 PCS Ball Valve
| US$0.10-150.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
3pcs ball valve
Connection Form
Thread
Driving Mode
Pneumatic
Nominal Pressure
ANSI CLASS 150-900
Channel
Straight Through Type
Structure
Fixed Ball Valve
Type
Fixed Ball Valve
Function
Bypass-Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Brand
Klqd
Seal Material
PTFE
Thread
Bsp;BSPT,NPT
Working Medium
Air, Water, Steam, Oil, Hot Water
Transport Package
Export Package
Specification
CE / ROHS / ISO9001: 2008
Trademark
KLQD
Origin
China
HS Code
8481804090
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
2.500kg
Product Description

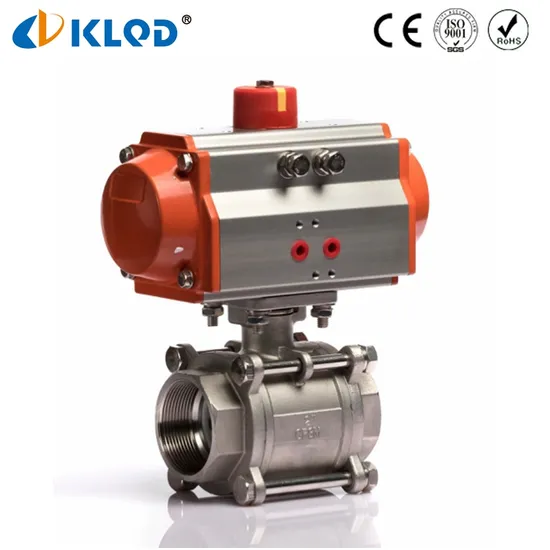

3 Pcs Pneumatic Double Acting Actuator Ball ValveDescription of goods: DN50 double acting pneumatic actuator ball valve for water Q611F Technical Data:
| Size | DN15~100 |
| Valve body material | CF8 or CF8M |
| Seat | PTFE |
| End connection | Thread, flange, welding or tri-clamp |
| Ball valve | 3 pieces type |
| Fluid | Air, water, oil |
| Fluid pressure | 0~16bar |
| Actuator | Single or double acting |
| Actuator pressure | 0.3~0.8MPa |
| Acessories | solenoid valve; limit switch box; positioner |
Ningbo Kailing Pneumatic Co., Ltd. is a leading Chinese company specializing in the manufacture of
solenoid valves and pneumatic components.
High quality of the raw materials, the precision of the parts, the hard tests during and at the end of
production are a warranty of reliability and features. Our real strength is to develop customised products
to solve any requirement of utilisation. The production runs conforming to the rigorous ISO 9001/2000
requirements .The product range consists of solenoid valves, process valves,Air source treatment units
etc ,which are found in a variety of industrial applications such as machinery, metallurgy, food, textile and
waste treatment.
we keep creating new innovation to offer the best solutions for your fluid control requirements.
