Basic Info.
Maximum Lifting Weight
<5t
Installation
Overall Rapid Disassembly
Product Name
EMT Tower Cranes
Keywords
Topkit Tower Crane
Mast Section Type
1.2m*1.2m*3m
Main Electrical Components
Frequency Converter, Contactor, Relay
Freestanding Height
36.50m
Necessary Electric Power
30kVA/36kVA
Transport Package
Standard Packaging or Customized
Specification
Standard packaging or customized
Product Description
Every product undergoes strict quality control to ensure customer satisfaction and provide great value for the price.Product Description
ABOUT THE COMPANY
Established in 2003, ELMAK is a rapidly growing tower crane
manufacturer, whose reputation has been built on agile manufacturing,
reliable service, and competitive prices.We have become a reliable partner in the field of design, cost estimation, manufacturing, sales, rental, maintenance, montage, and after-sale services of tower cranes for construction companies in more than 20 countries.

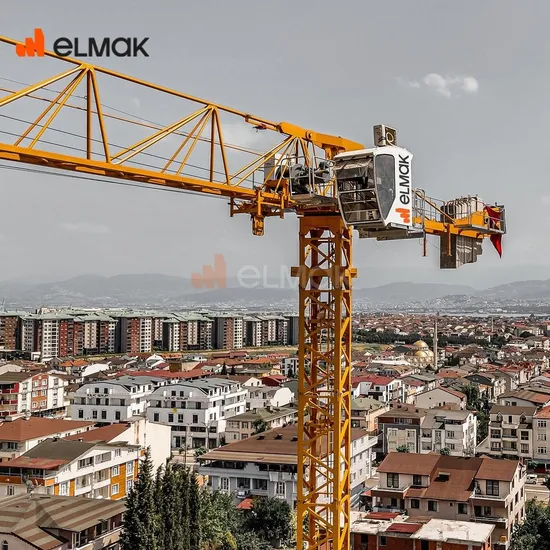

We give individual attention to every single detail to ensure that our clients are carefully looked after by professional management and well-trained staff. From conceptual planning through supply and ongoing management, we tailor our package to meet the modern-day demand. Quality control systems are implemented strictly in the whole procedure, ensuring the perfect quality that fully conforms the international standards.Topkit Tower Crane: The Flat Top Tower Crane is the tower crane with the top part removed. This decreases the height of the crane, allowing it to be used in congested areas where space is confined or near the airports. Topless cranes can be also used in conjunction with other tower cranes at sites with limited area access. They're well suited for heavy lifting and placement duties on the most challenging job sites. Improved performance of the Topless Tower Crane significantly lowers the requirements for hoisting capacity required for mounting and dismantling the Mobile Crane.
Product Parameters
TOPKIT TOWER CRANE SPECIFICATION |
Product Name | EMT Tower Cranes |
Keywords | Topkit Tower Crane |
Model | EMT 5510-6 |
Tip Load | 1.3 Ton |
Max Load | 6 Ton |
Jib Length | 50m |
Mast Section Type | 1.2m*1.2m*3m |
Slewing | RCV95 |
Catalogue | Catalogue |
Hoisting | 24LFV15Q1L |
Main electrical components | Frequency converter, Contactor, Relay |
Trolley | 4D3V2 |
Rope Capacity | 400m |
Motor | 24 |
We support customized lifting tower cranes of various specifications on demand |
ltems | Mechanisms | Speed/Hoist weight | Rope | Motor(KW) |
M/min | t | M/min | t | Capacity |
Hoisting | 24LFV15Q1L | | | 400m | 24 |
0-39.4 | 3.0 | 0-19.7 | 6.0 |
0-78.8 | 1.5 | 0-39.4 | 3.0 |
Trolley | 4D3V2 | 0-58r/min | 75N.m |
Slewing | RCV95 | 0-0.7rpm | 2*95Nm |
Traveling | RT224 | 12.5/25m/min | 2*3 |
Main electrical components:(Frequency converter,Contactor,Relay) |
Detailed Photos
HIGH LOAD CAPACITY
With a strong rated load capacity of 6 tons, the flatbed crane tower crane is ideal for heavy construction needs while ensuring fast project completion.SUPERIOR HEIGHT PERFORMANCE
With a maximum lifting height of 50 meters, this tower crane is designed with an impressive vertical reach, enabling it to handle a wide range of construction projects, including high-rise buildings and complex structural works.DURABLE CORE COMPONENTS
The crane is manufactured with high-quality core components such as a PLC system, precision-engineered gearbox, and reliable motors to enhance performance and service life, ensuring minimal maintenance downtime.VERSATILE APPLICATIONS
Designed to meet the needs of a variety of industries such as construction and infrastructure, this crane adapts to a variety of lifting tasks and improves workflow efficiency.ENVIRONMENTALLY FRIENDLY
The energy-saving design and environmentally friendly features of the crane make it an ideal choice for environmentally conscious buyers, ensuring a reduced carbon footprint and a sustainable construction process.
FAQ
Q1. Could I have the prices of your products?
Welcome. Pls, feel free to send us an email here. You will get our reply in 24 hours
Q2. Do you inspect the finished products?
Yes, each step of production and finished products will be coming out inspection by the QC department before shipping.
Q3: Are you a trading company or manufacturer?
We are a manufacturer.
Q4. how can we guarantee quality?
Pre-production samples must be available before mass production final inspection must be performed before shipment.
Q5. Do you have a CE certificate for your concrete batching plant/cement silo?
Yes, we have. Both are our patent products, certificated by CE.
