Agricultural Gearbox Harvester Machine Factory Customized Transmission Gleason Bevel Mower Spreader Baler Gear Box

Agricultural Gearbox Harvester Machine Factory Customized Transmission Gleason Bevel Mower Spreader Baler Gear Box

US$200.00-500.00 1 Piece (MOQ)

Basic Info.

Model NO.
KLF2061
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Power Source
Tractor
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Side Hanging Type
Certification
ISO9001:2008
Color
Red
Condition
New
Application Field
Agriculture, Livestock, Aquaculture
Warranty
Warranty
OEM
Available
Ratio
1:5.33 1.93:1
Input
32HP-80HP
Input N.M
119 -677
Output N.M
65-1007
Input r.p.m
540 / 1000
Output r.p.m
101 / 5330
Kw
8-59
Transport Package
Crate
Specification
Cast iron
Trademark
KADIVA
Origin
Zhejiang China
HS Code
8483409090
Production Capacity
50000PCS/Month

Product Description

Agricultural Gearbox Harvester Machine Factory Customized Multifunction Transmission Gleason Bevel Mower Spreader Baler Gear box Product Description

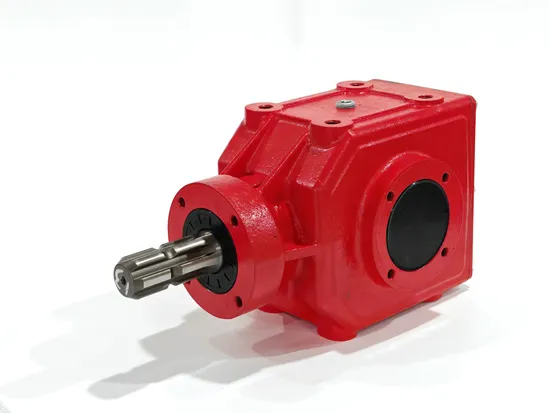

KLF2061 harvester gearbox
This KLF2061 universal gearbox is suitable for farm machinery (can be connected with long pipes), harvesters, etc., with various specifications of speed increase and deceleration. High strength die cast aluminium alloy cases, The tooth shape is Gleason Bevel Gears.The gearbox is a fundamental component of the power transmissionsystem of many types of agricultural machinery. Its most common application is to receive rotary motion from the power take off of a tractor by means of a universal joint drive shaft. This rotary motion is then distributed to the various functions required by the machine. Product Parameters
