Yueli Zs4132*2 Double Spindle Manual Drilling Tapping Copound Machine

Product Description

Yueli ZS4132*2 Double Spindle Manual Drilling Tapping Copound Machine

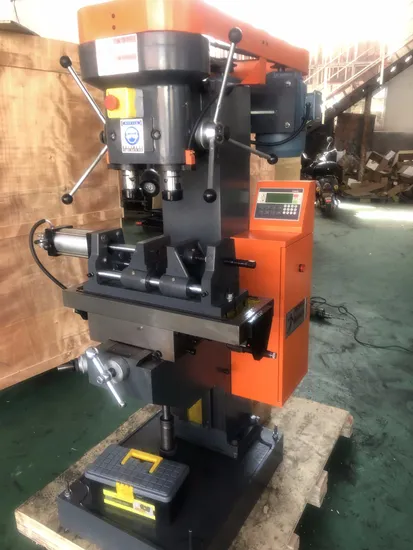

I.Equipment description and pictures 1.The manual machine tool consists of a base, a column, a lifting table, a middle drag, a worktable, and a spindle unit.
2.PLC control program control, friendly human-machine interface dialogue, intuitive programming and easy operation, ordinary people can quickly learn.
3.Sliding table double-spindle manual feed unit, Korea imported pneumatic components transmission table. The worktable adopts pneumatic device and hydraulic buffer for positioning, moving and high positioning accuracy. Eliminates the problem of partial tooth failure of old-fashioned equipment.
4.The worktable is high-frequency treated, wear-resistant, high-temperature resistant, and equipped with a lubrication system.
5.It is used in the processing of valves, plumbing and sanitary ware, door control hardware, fire hydrants, auto parts, etc. It is easy to operate, beautiful in appearance and cost-effective.
II.Technical Parameter

No.	Specification Parameter name		Unit	ZS4132 X 2		ZS4132X2A		ZS4132X2B
1	Spindle Sleeve Diameter		MM	86
2	Number of cutting spindle axes		/	2
3	Transfer method		/	Single motor synchronous belt drive		Single motor gear drive		Primary belt drive
4	Max drilling hole diameter		MM	32
5	Max tapping diameter		MM	32
6	Spindle taper		#	NT30
7	Spindle spacing		MM	150
8	Distance from spindle end face to work table		MM	260-580
9	Workbench size		MM	620*230
10	Workbench travel X axis		MM	160
11	Y axis medium towing travel		MM	120
12	Spindle stroke(drilling/tapping)		MM	110/110
13	Manual/automatic tapping		/	Manual
14	Drilling spindle speed		Rpm	1420/990/619			874/1382
15	Tapping spindle speed		Rpm	580/410/257			575/908
16	Drilling motor model no.		/	3kW/4P	3kW/4P				3kW/4P
17	Tapping motor model no.		/	/	/				3kW/4P
18	Total power		kW	3			6
19	Dimension(LxWxH)		MM	1200x68x1600
20	Weight		KG	700			750

III.Production workshop
IV.Package and Loading V.Certificate
