Jez Laser Cleaning Machine for Engine Blocks and Engine Parts

Product Description

https://jezlaser.en.made-in-china.com/product-list-1.html
Jez laser cleaning machine for engine blocks and engine Parts usng newest mini fiber laser source which guarantee smaller size and lowest weight ,but same powerful functions .
Newest designed handheld cleaning head with emergency stop button guarantee safer operation .
The 200W portable laser cleaner is widely used in rust ,paint removal ,restoration of stone sculpture ,wooden furnitures ,monument ,building facades ,graffiti removal....
Features
1. Smallest and lightest weight ;
2. Non-contact cleaning,no internal stress and deformation;
3. Lightweight design, high integration, safe operation ;
4. No need chemical detergent, no consumable ;
5. Universal 1 phase 100-240V / 50-60Hz global power supply ;
6. 2D newest mini air cooling cleaning head with emergency stop button;
7. Built-in air cooling system with 4 different laser patterns;
8. Easier clean and super clean mode make cleaning job convenient and efficient .
Applicable materials and industries
1.Rust removing from metal parts ;

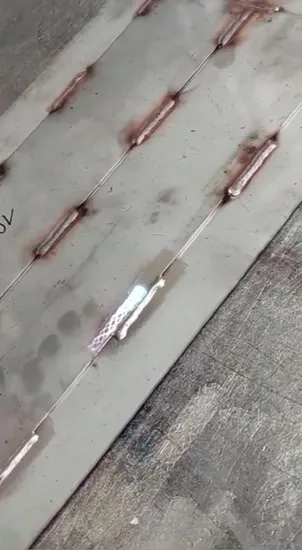

2.Weld bead cleaning for stainless steel ,copper ,Aluminium,carbon steel ;
3.Cultural Relics,Sculptures restoration ;
4.Graffiti ,paint removing from heritage building and Stone statue;
5.Wooden antique furniture clean after smoke damage.
Specifications(For reference only)

Laser Power	200W
Laser wavelength	1060-1080nm
Pulse width(ns)	150-190
Pulse repetition frequency(KHZ)	5-200
Max Single Pulse Energy(MJ)	1.5
Working Humidity	<70%
Power Supply	1PH / 100-240V / 50-60HZ
Power Consumption	1400W
Cooling Way	Air cooling
Laser Type	Pulse Fiber laser
Length of fiber cable(m)	5
Working Humidity	<70%
Working Temperature	5-40°C
Lase Beam Width	Standard 100 x 100 mm
Laser beam types	4 different types
E-Stop button on cleaning head	Yes
Weight of cleaning head	0.7 kg
Machine Size	480 x 240 x 440 mm
Net Weight	15KG
Max Scanning speed	45,000mm/s
Operation interface language	English(Option)
Air Blow function to protect Focus lens	Yes
Air Blow function to improve working efficiency	Yes
Scanning Mode	F-Theta

Our Advantages
1.Focus on laser surface treatment mainly with many years experience of laser cleaning
2. Own designed handheld cleaning head and software
3. Emegency stop button on cleaning head makes operation safer
4. Multiple safety protections to operators and machine
FAQ
Q:Can the laser cleaner support long hours of work?
A:No problem, our laser cleaners can only be delivered to customers after rigorous testing, which can support long hours of work
Q:Can you test the samples for me?
A: No problem, we can provide free sample test, and provide test photos and videos to customers
Q:Can I schedule a video conference with you and see your production workshop?
A:Yes, you can learn more about our company and products through video conferences
