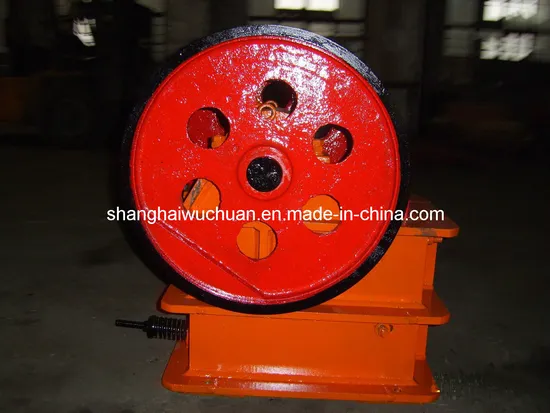

Mining Machinery Stone PE Jaw Crusher

Product Description

Use: Mining, metallurgy, construction, quarry& chemistry industries Crush: Stone, ore, coal etc
Jaw crusher is one of the most popular stone-crushing equipments in the world, Jaw Crusher is ideally suitable for primary and secondary crushing.
The highest anti-pressure strength of crushed material is 320Mpa.
Our design and production are of high position both at home and abroad. One of our main products, Jaw Crusher is designed by our engineers with large reduction ratio, even granularity, simple structure, reliable operation, convenient maintenance, low cost, It is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries.

No	Model	Technical details					Motor power (KW)	Weight(t)
		Inlet size (mm)	Max feed (mm)	Adjustive range of discharge opening (mm)	Capacity (t/h)	Eccentric shaft speed (r/min)
1	PE250 x 400	250 x 400	210	20 - 80	10 - 25	300	15	2.65
2	PE400 x 600	400 x 600	350	40 - 100	20 - 70	275	30	6.5
3	PE500 x 750	500 x 750	425	50 - 120	50 - 100	283	55	10.5
4	PE600 x 900	600 x 900	500	65 - 160	75 - 150	300	75	15.5
5	PE750 x 1060	750 x 1060	630	80 - 140	120 - 210	275	110	27.8
6	PE900 x 1200	900 x 1200	750	105 - 205	200 - 350	250	160	45
7	PEX150 x 750	150 x 750	120	10 - 40	10 - 30	320	15	3.19
8	PEX250 x 750	250 x 750	210	25 - 60	15 - 35	330	22	4.65
9	PEX250 x1000	250 x 1000	210	25 - 60	20 - 52	330	37	6.31
10	PEX250 x1200	250 x 1200	210	25 - 60	25 - 60	330	45	7.17
11	PEX350 x750	350 x 750	300	30 - 75	20 - 40	300	37	7.32
12	PEX300 x1300	300 x 1300	250	20 - 90	30 - 140	300	75	12.33
13	WJ0806	600 x 750	510	55 - 160	60 - 120	283	55	10.5
14	WJ1108	800 x 1060	700	80 - 160	120 - 290	275	90 - 110	25.5
15	WJ1210	1000 x 1200	900	150 - 235	220 - 400	220	160 - 185	45.05
16	WJ1312	1150 x 1300	1000	180 - 330	640 - 880	220	200 - 220	59

Package & Delivery time: Trade terms: FOB, C&F, CIF, etc Delivery time: About 35~ 70 days after sign the order. Payment : T/T, L/C Package: Export standard.
Application of Jaw crusher equipment: Jaw crusher is easy to install, widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries. Our foundry is located in Zhejiang province, over 140,000 square meters and more than 1,000 employees, had approved with ISO9001, ISO-TS16949 international quality system and ISO14001 environmental management system and OHSAS1801 occupational health and safety management system certification. If you are interested in any of our Jaw crusher or would like to discuss a custom order, please feel free to contact us.
