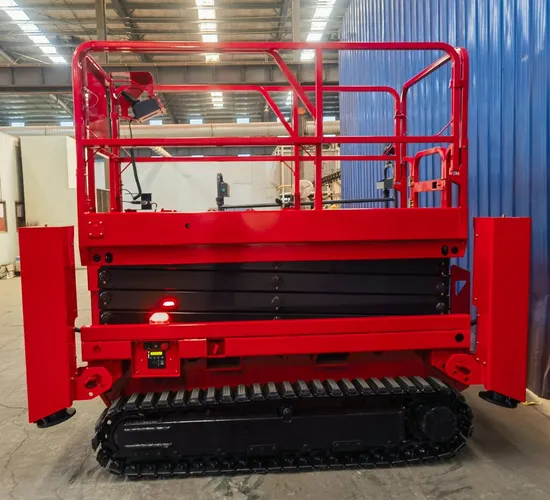

Good Quality 12m One Man Lift Gtjz12 Electric Mobile Scissor Lift Hydraulic Cargo Elevator with 320kg Lifting Capacity for Warehouse
| US$3,000.00-7,800.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
GTJZ12
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Factory
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Self-propelled
Driven Type
Hydraulic
Running Mode
Moving
Feature
Easy Operation
Certification
CE
Max. Working Height
14m
Max.Platform Height
12m
Loading Capacity
500kg
Extension Load
113kg
Max. Climbing Ability
25%
Weight
2860kg
Color
Customization
Transport Package
Nude Packing/Wooden Packaging
Specification
2.48*1.19*2.55m
Trademark
TITECO
Origin
China
HS Code
8428909090
Production Capacity
3000 Pieces/Year
Packaging & Delivery
Package Size
2.48cm * 1.19cm * 2.10cm
Package Gross Weight
2900.000kg
Product Description
Technical Specification| Model | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 |
| Max. Working Height | 8.00m | 10.00m | 12.00m | 14.00m | 16m |
| Max.Platform Height | 6.00m | 8.00m | 10.00m | 12.00m | 14m |
| Loading Capacity | 320kg | 500kg | 500kg | 320kg | 320kg |
| Extension Load | 113kg | 113kg | 113kg | 113kg | 113kg |
| Platform Dimension | 2.27x1.11x1.11mm | 2.27×1.11x1.11m | 2.26×1.13×1.1m | 2.29×1.13×1.1m | 2.67×1.13 |
| Overall Size (Guardrail not folded) | 2.48×1.15×2.22m | 2.48×1.15×2.22m | 2.48×1.15×2.42m | 2.48×1.19×2.55m | 2.81×1.25×2.75m |
| Overall Size (Guardrail folded) | 2.48×1.15×1.68m | 2.28×1.15×1.68m | 2.48×1.15×1.97m | 2.48×1.19×2.10m | 2.81×1.25×2.1m |
| Platform Extension | 0.9m | 0.9m | 0.9m | 0.9m | 0.9m |
| Min. Ground Clearance | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m | 0.1/0.02m |
| Wheelbase | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m |
| Turning Radius (Inner/outer) | 0/2.2m | 0/2.2m | 0/2.2m | 0/2.2m | 0/3m |
| Lifting/Driving Motor | 24V/3.3Kw | 24V/3.3Kw | 24V/4.5Kw | 24V/4.5Kw | 24V/3.3Kw |
| Lifting Speed | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min | 3-5m/min |
| Driving Speed (Standard) | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h | 3.5km/h |
| Driving Speed (Lifting) | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h | 0.8km/h |
| Battery | 4×6V/230ah | 4×6V/230ah | 4×6V/225ah | 4×6V/200ah | 4×12V/150ah |
| Charger | 24V/30A | 24V/30A | 24V/30A | 24V/30A | 24V/30A |
| Max. Climbing Ability | 25% | 25% | 25% | 25% | 25% |
| Max. Slope | 2°/3° | 2°/3° | 1.5°/3° | 1.5°/3° | 1.5°/3° |
| Tire | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ381×127mm | Φ590×190mm |
| Total Weight | 2040kg | 2130kg | 2580kg | 2860kg | 3600kg |
Introduction:
GTJZ Series is one of the relatively advanced aerial work equipment, can walk, when the highest height potholes provides maximum safety protection system, operation automaticity, extremely safe ground clearance, make indoor possible operation, strong, reliable, easy maintenance, standard parts, no trace tires, slope, alarm, dual wheel speeds, free turning device, charging indicator, timer, emergency descent system. Is one of the relatively advanced aerial work equipment, can walk, when the highest height potholes provides maximum safety protection system, operation automaticity, extremely safe ground clearance, make indoor possible operation, strong, reliable, easy maintenance, standard parts, no trace tires, slope, alarm, dual wheel speeds, free turning device, charging indicator, timer, emergency descent system.
Our scissor lift has high safety and durable quality, providing longer service time and minimum downtime. As a professional manufacturer of scissors sets in northern China, we have provided thousands of scissors sets to the Philippines, Brazil, Peru, Chile, Argentina, Bangladesh, India, Yemen, Saudi Arabia, United Arab Emirates, Malaysia, Thailand and other countries.
Features:
Shipping:
