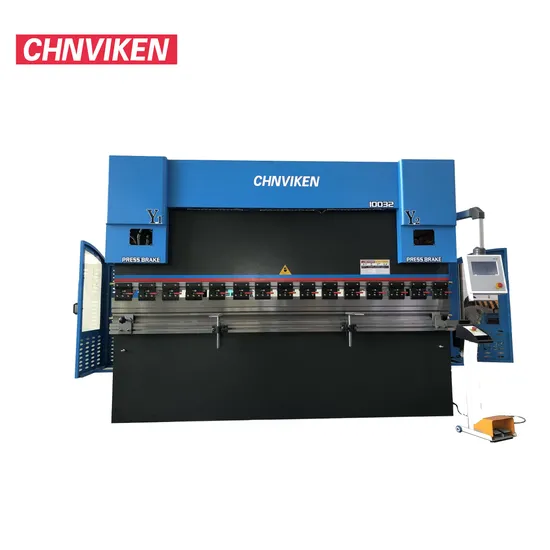

Tp10s Sheet Metal Bender Press Brake

Tp10s Sheet Metal Bender Press Brake

US$14,580.00 1 sets (MOQ)

Basic Info.

Model NO.
WC67K
Warranty
3-year
Condition
New
Certification
CE ISO
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Weight(Kg)
7500
Machine Type
Torsion Bar
Depth of Throat: 320mm
Distance Between Housings: 2600mm
Showroom Location
Egypt, Canada, UAE, Australia, None
Warranty of Core Components
2 Years
Video Outgoing-Inspection
Provided
Raw Material
Sheet Metal & Steel Plate
Sheet Metal & Steel Plate
Motor Power (Kw):7.5
Marketing Type
New Product 2024
Key Selling Points
Automatic
Year
2024
Max Opening Height:380mm
Slider Stroke:120mm
Model:Wc67K-100t/3200
Bending Pressure:1000kN
Power
Hydraulic
Transport Package
Plywood Box
Trademark
CHNVIKEN
Origin
Anhui China
Production Capacity
5000pieces/Year

Product Description

Product Overview
-------------------------------------------------------------------------------------------------------------------
High-Precision CNC Press Brake for Various Metalworking Needs This high-precision, reliable CNC press brake is designed to meet various metalworking needs. It features a streamlined design, robotic welding, and stress relief annealing to ensure high precision and long service life.
Bending Capability 80/3200 100/3200 100/4000 125/3200 125/4000 160/3200 160/4000
Nominal Force(KN) 800 1000 1000 1250 1250 1600 1600
Worktable Length(mm) 3200 3200 4000 3200 4000 3200 4000
Column Distance(mm) 2650 2610 3100 2610 3100 2600 3050
Throat Depth(mm) 250 320 320 320 320 320 320
Ram Stroke(mm) 120 120 120 120 120 180 180
Main Motor Power(KW) 5.5 7.5 7.5 7.5 7.5 11 11


The new generation DA-Touch controls offers an even highergrade of efficiency in programming, operation and control of
today's press brakes. Ease of use combined with state-of-the-arttechnology go hand in hand, improving productivity.
The touch screengives access to the proven Delem user-interfaceand enables direct navigation between programming
and pro-duction.Functions are directly located where you need them, offering optimised ergonomics throughout the application.

The DA-53T offers 2D programming that includes automaticbend sequence calculation and collision detection.Highly effective
control algorithms optimise the machine cycle and minimiseset-up time. This makes using press brakes easier, more
efficientand more versatile then ever.
---------------------------------------------------------------------------------------------------
1. Usage and maintenance:Re: CNC hydraulic press brake is totally designed and manufacture by Viken, for usage and maintenance.2. What's the shipping cost from China to your country?Re:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address withpostcode.We have reliable shipping agent to insure the safe, convenient and timely delivery.3. Payment terms, MOQ, warranty, FOB.Re:Payment terms: 30% TT paid in advance, the balance of 70% before the shipment.Minimum order quantity: 1 set.Warranty: 3 years.FOB: Nanjing / Shanghai/or others port in CHINA.4. What's the package?Re:Fumigation-free plywood case or without package.5. What about commissioning service?Re:We can offer commissioning service, the buyer need to afford air tickets.6. What's policy for guarantee and broken parts?Re:Warranty period of equipment lasts two year, during which the broken parts and spares caused by quality can be offered free.
